Subaru Legacy Service Manual: Installation

1. Clean the mating surface of oil pan and transmission case.

2. Make sure that the CVTF filter is installed to the transmission case.

NOTE:

Make sure that the CVTF filter does not protrude from the transmission case.

3. Check the control valve body for dust and other foreign matter.

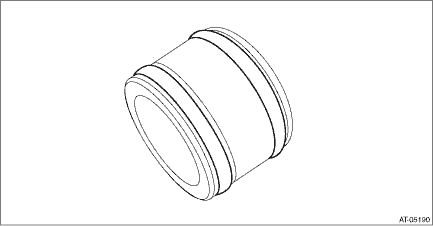

4. Install the O-ring to the pressure pipe.

NOTE:

Use new O-rings.

Apply CVTF to the O-rings.

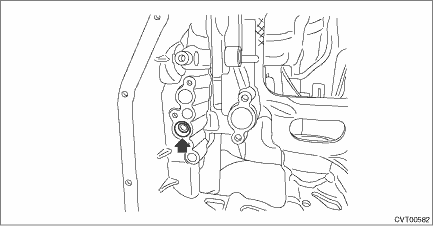

5. Install the pressure pipe.

6. Install the control valve body to the transmission.

CAUTION:

Beware of the transmission harness getting caught in between.

Do not impact or bend the transmission harness because it has the oil temperature sensor inside.

NOTE:

Engage the manual valve to the manual plate.

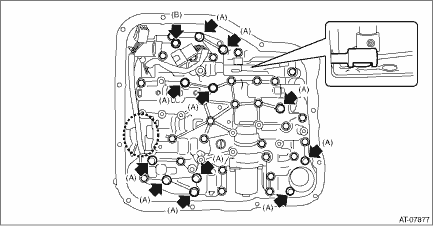

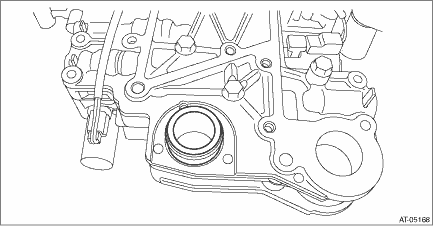

Lead the transmission harness through from the point indicated by dashed line in the figure.

Tightening torque:

9 N·m (0.9 kgf-m, 6.6 ft-lb)

(A)

Short bolt (11 pcs)

(B)

Long bolt (1 pcs)

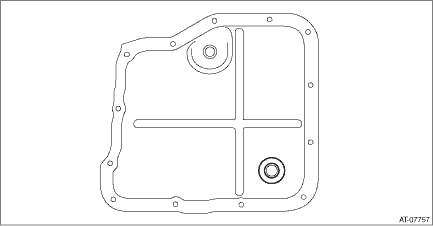

7. Install the O-ring to oil strainer and install the oil strainer.

NOTE:

Use new O-rings.

Apply CVTF to the O-rings.

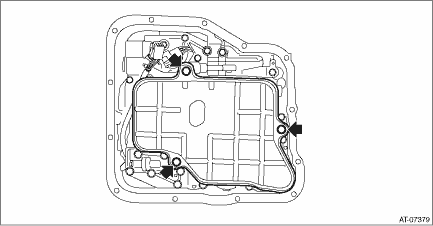

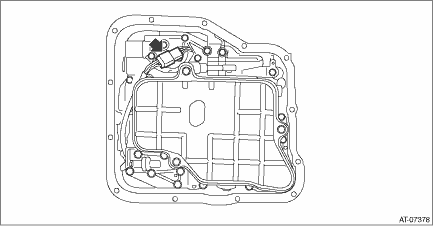

Let the transmission harness run between control valve body and oil strainer.

Tightening torque:

9 N·m (0.9 kgf-m, 6.6 ft-lb)

8. Connect the control valve harness connector.

9. Clean the magnet.

10. Attach the magnet at the specified position of the oil pan.

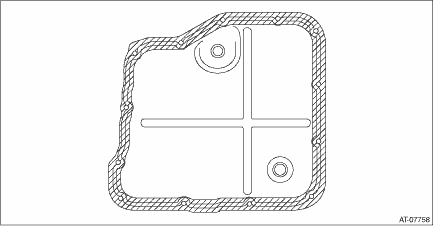

11. Apply liquid gasket all around the oil pan mating surface seamlessly.

Liquid gasket:

THREE BOND 1217B (Part No. K0877YA020) or equivalent

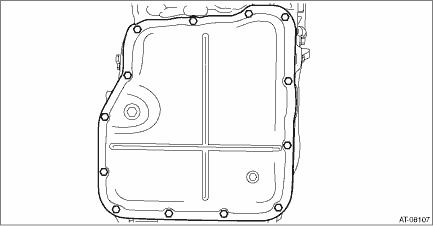

12. Install the oil pan by equally tightening the bolts.

CAUTION:

Beware of the transmission harness getting caught in between.

Tightening torque:

5 N·m (0.5 kgf-m, 3.7 ft-lb)

13. Connect the ground terminal to battery sensor. NOTE

14. Fill with CVTF. CVTF > REPLACEMENT

15. Adjust the CVTF level. CVTF > ADJUSTMENT

16. Perform the operation of AT learning mode. Learning Control
