Subaru Legacy Service Manual: Installation

1. Clean the mating surface of the extension case and intermediate case.

2. Select the thrust needle bearing. Rear Drive Shaft > ADJUSTMENT

3. Select the shim for transfer reduction driven gear. Transfer Reduction Driven Gear > ADJUSTMENT

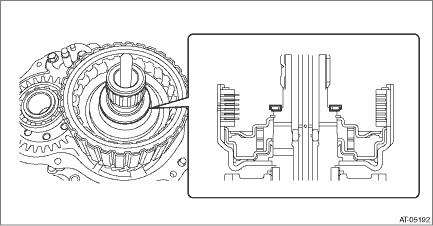

4. Install the selected thrust needle bearing to transfer clutch assembly.

NOTE:

Install the thrust needle bearing in the correct direction.

5. Attach the selected shim to transfer reduction driven gear assembly.

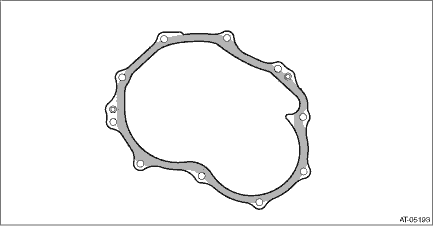

6. Apply liquid gasket to extension case seamlessly.

Liquid gasket:

THREE BOND 1215B or equivalent

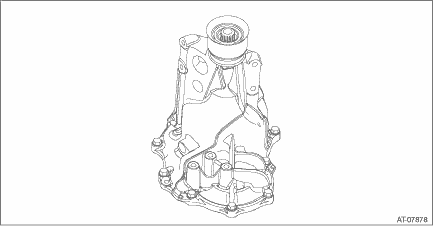

7. Install the extension case.

Tightening torque:

25 N·m (2.5 kgf-m, 18.4 ft-lb)

8. Install the front wheel speed sensor. Front Wheel Speed Sensor > INSTALLATION

9. Install the transmission assembly. Automatic Transmission Assembly > INSTALLATION

Adjustment
NOTE:When replacing the extension case, select the shims for rear drive shaft thrust needle bearing and transfer reduction driven gear. Rear Drive Shaft > ADJUSTMENT Transfer Reduction Driven Gear > ...

Inspection
• Check there is no leak of CVTF from the joint between extension case and intermediate case.• Check there is no damage or cracks on the extension case. ...
