Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

1. Install the front differential assembly to the converter case.

NOTE:

Be careful not to damage the inside of the case (especially the mating surface of the differential side retainers).

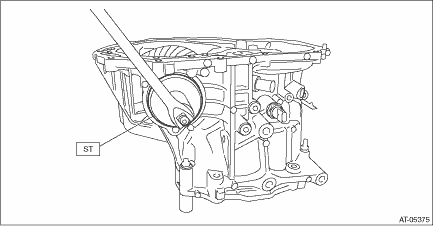

2. Temporarily install the differential side retainers using ST.

ST 18658AA020WRENCH COMPL RETAINER

3. Adjust the backlash of the front differential. Front Differential Assembly > ADJUSTMENT

4. Inspect and adjust the tooth contact. Drive Pinion Shaft Assembly > ADJUSTMENT

5. Remove the differential side retainers and install the O-rings and oil seals. Front Differential Assembly > ASSEMBLY

NOTE:

Record how many turns were needed to remove.

Use new O-rings and oil seals.

6. Install the differential side retainers using ST.

NOTE:

When attaching, turn the differential side retainer by the same number of turns it took to remove, and align the marks.

ST 18658AA020WRENCH COMPL RETAINER

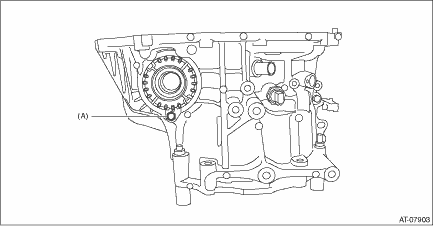

7. Install the lock plate.

Tightening torque:

25 N·m (2.5 kgf-m, 18.4 ft-lb)

(A)

Lock plate

8. Install the drive pinion shaft assembly. Drive Pinion Shaft Assembly > INSTALLATION

9. Install the primary pulley, secondary pulley and variator chain. Primary Pulley and Secondary Pulley > INSTALLATION

10. Install the transmission case. Transmission Case > INSTALLATION

11. Install the forward clutch assembly. Forward Clutch Assembly > INSTALLATION

12. Install the intermediate case. Intermediate Case > INSTALLATION

13. Install the transfer reduction driven gear assembly. Transfer Reduction Driven Gear > INSTALLATION

14. Install the transfer clutch assembly. Transfer Clutch > INSTALLATION

15. Install the rear drive shaft. Rear Drive Shaft > INSTALLATION

16. Install the extension case. Extension Case > INSTALLATION

17. Install the transmission harness. Transmission Harness > INSTALLATION

18. Install the control valve body and oil pan. Control Valve Body > INSTALLATION

19. Install the air breather hose. Air Breather Hose > INSTALLATION

20. Install the transmission assembly to the vehicle. Automatic Transmission Assembly > INSTALLATION
