Subaru Legacy Service Manual: Installation

1. Set the range select lever to the “N” range.

2. Install the parking pawl shaft, return spring and parking pawl.

NOTE:

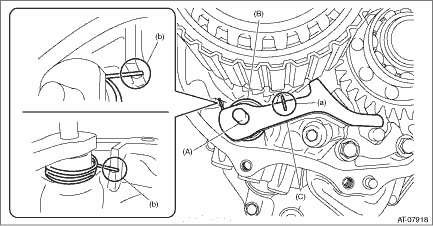

Make sure that the end of return spring sticks out of parking pawl as shown in (a). Make sure that the other end contacts the rib of intermediate case as shown in (b).

(A)

Parking pawl shaft

(B)

Return spring

(C)

Parking pawl

3. Install the extension case. Extension Case > INSTALLATION

4. Install the transmission assembly to the vehicle. Automatic Transmission Assembly > INSTALLATION

Inspection
• Check the parking pawl for breakage or damage.• Check the return spring for fatigue. ...
