Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

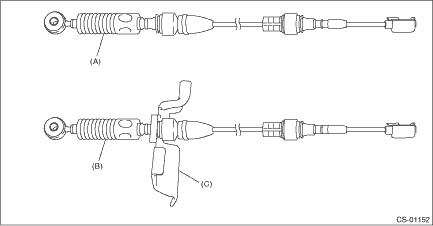

1. When replacing the new MT gear shift cable, secure it to shift bracket with the clamps, be careful not to mistake the installing direction.

(A)

Old MT gear shift cable

(B)

New MT gear shift cable

(C)

Shift bracket

2. Install the shift bracket together with the MT gear shift cable.

CAUTION:

Do not bend MT gear shift cable at a sharp angle.

Do not twist the cable inner excessively.

NOTE:

When installing the MT gear shift cable, make sure that the mark or blue mark on the cable faces up.

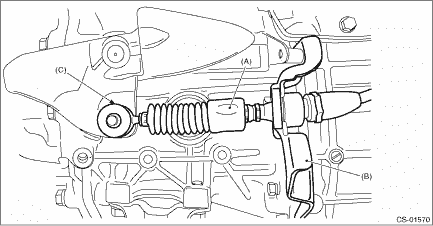

(A)

MT gear shift cable

(B)

Shift bracket

(C)

Mark

3. Tighten the shift bracket with specified torque.

Tightening torque:

18 N·m (1.8 kgf-m, 13.3 ft-lb)

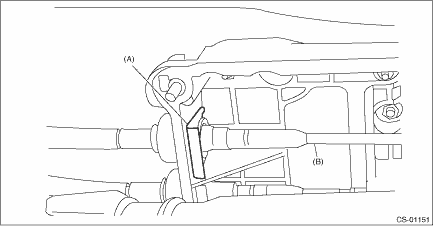

(A)

MT gear shift cable

(B)

Shift bracket

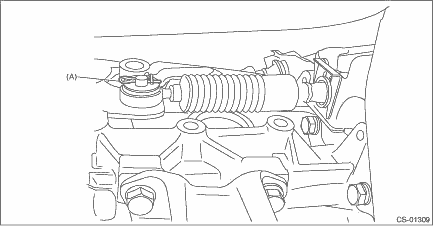

4. Install the snap pin.

(A)

Snap pin

5. Install the dust cover. (OUTBACK model)

Tightening torque:

15 N·m (1.5 kgf-m, 11.1 ft-lb)

6. Insert the MT gear shift cable into the cover cable assembly, and secure it with the clamp.

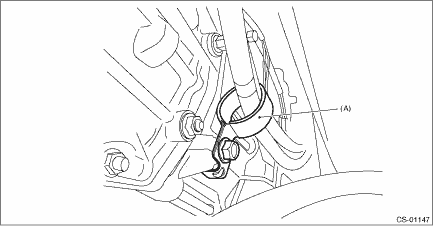

(A)

Clamp

(B)

MT gear shift cable

7. Connect the MT gear shift cable.

8. Install the plate cable assembly.

Tightening torque:

7.5 N·m (0.8 kgf-m, 5.5 ft-lb)

9. Insert the MT gear shift cable into clamp cable, and install to the transmission.

Tightening torque:

18 N·m (1.8 kgf-m, 13.3 ft-lb)

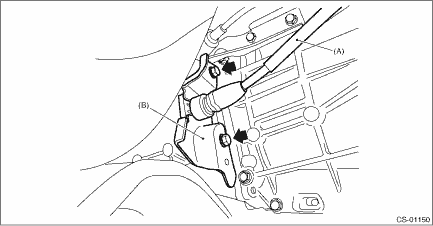

(A)

Clamp cable

10. Install the center exhaust cover.

Tightening torque:

18 N·m (1.8 kgf-m, 13.3 ft-lb)

11. Install the center exhaust pipe. Center Exhaust Pipe > INSTALLATION

12. Lower the vehicle.

13. Connect the ground terminal to battery sensor. NOTE

14. Make sure the gears can be shifted accurately into each gear.

Removal
1. Disconnect the ground terminal from battery sensor. NOTE2. Lift up the vehicle.3. Remove the center exhaust pipe. Center Exhaust Pipe > REMOVAL4. Remove the center exhaust cover.5. Remove the cla ...
