Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

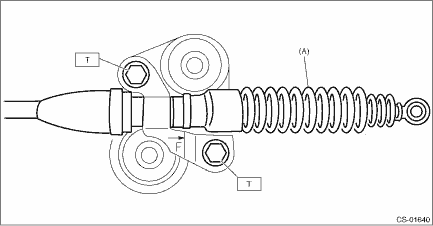

1. Position the select cable as shown in the figure, and install it to the plate assembly.

CAUTION:

If the cable is installed in the wrong direction, loosen the bracket bolts, and then reinstall the cable in the correct direction.

Do not adjust the cable end direction by turning it forcibly to prevent the boot from being twisted.

Tightening torque:

T: 18 N·m (1.8 kgf-m, 13.3 ft-lb)

(A)

Select cable

2. Install the select cable to the shifter arm.

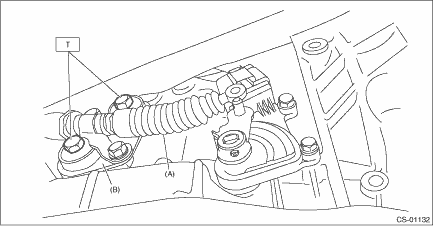

3. Install the plate assembly.

Tightening torque:

T: 25 N·m (2.5 kgf-m, 18.4 ft-lb)

(A)

Select cable

(B)

Plate ASSY

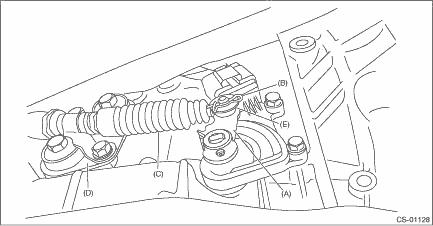

4. Install the washer and snap pin to the shifter arm.

(A)

Shifter arm

(B)

Snap pin

(C)

Select cable

(D)

Plate ASSY

(E)

Washer

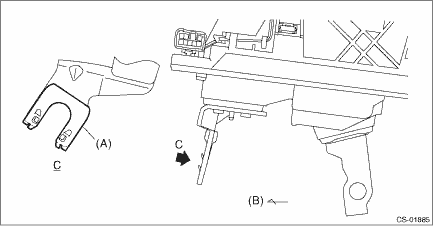

5. Install new clamp paying attention to the installing direction.

(A)

Clamp

(B)

Forward

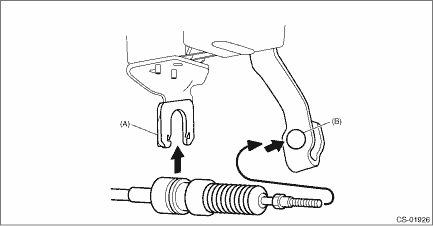

6. Insert the cable socket into the bracket and the connector in the arrow direction from the side to assemble the cable.

(A)

Bracket

(B)

Connector

7. Shift the select lever to the “N” range, and then adjust the select cable position. Select Cable > ADJUSTMENT

8. Install the center exhaust cover.

Tightening torque:

18 N·m (1.8 kgf-m, 13.3 ft-lb)

9. Install the center exhaust pipe. (2.5 L model) Center Exhaust Pipe > INSTALLATION

10. Install the front exhaust pipe and rear exhaust pipe. (3.6 L model) Front Exhaust Pipe > INSTALLATION Rear Exhaust Pipe > INSTALLATION

11. Connect the ground terminal to battery sensor. NOTE

Adjustment
1. Shift the select lever to “N” range.2. Lift up the vehicle.3. Remove the center exhaust pipe. (2.5 L model) Center Exhaust Pipe > REMOVAL4. Remove the front exhaust pipe and rear exhau ...

Inspection
Check the removed cable and replace or adjust if damaged, rusty or malfunctioning.1. Check that the inner cable moves smoothly without drag.2. Check the inner cable for damage and rust.3. Check the ou ...
