Subaru Legacy Service Manual: Installation

1. SEDAN MODEL

CAUTION:

If the hook - rear seat is disconnected from the vehicle body, make sure to replace the hook - rear seat with a new part to prevent the decline of the fixed force of the seat.

1. Install the trim panel - rear pillar UPR.

2. Install the side pad assembly - backrest.

Tightening torque:

53 N·m (5.4 kgf-m, 39.1 ft-lb)

3. Install the rear seat cushion assembly.

4. Connect the ground terminal to battery sensor. NOTE

2. OUTBACK MODEL

CAUTION:

If the hook - rear seat is disconnected from the vehicle body, make sure to replace the hook - rear seat with a new part to prevent the decline of the fixed force of the seat.

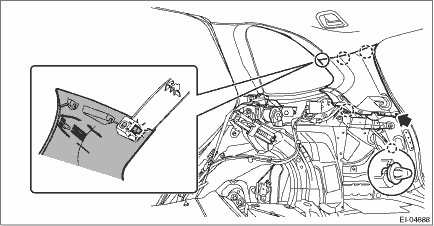

1. Install the rear quarter trim UPR.

NOTE:

Insert the claw of the rear quarter trim UPR - rear into the rear quarter trim UPR - front.

2. Install the trim panel - rear apron.

3. Install the mat - rear floor, box - sub trunk, and spacer - rear floor.

4. Remove the clips, and install the trim panel - rear skirt.

5. Install the side pad assembly - backrest.

Tightening torque:

53 N·m (5.4 kgf-m, 39.1 ft-lb)

6. Install the rear seat cushion assembly.

7. Connect the ground terminal to battery sensor. NOTE
