Subaru Legacy Service Manual: Installation

CAUTION:

When reusing the tether clip on the upper part of the trim panel - front pillar UPR, check that there is no damage to the tether clip. If the tether clip is damaged, always replace it with a new tether clip. If the tether clip is damaged, its holding force is reduced and the trim panel - front pillar UPR may come off.

Do not reuse the tether clip removed from the upper part of the trim panel - front pillar UPR. Always replace with a new part.

Before installing the trim panel - front pillar UPR, check the condition of protective non-woven fabric (white) of the curtain airbag. If it is damaged (airbag module cloth is exposed), replace the curtain airbag module assembly with a new part.

If the hook - rear seat is disconnected from the vehicle body, make sure to replace the hook - rear seat with a new part to prevent the decline of the fixed force of the seat.

1. Remove the remaining tether clips from the vehicle body.

2. Install the trim panel - front pillar UPR.

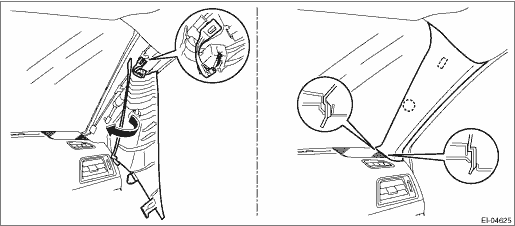

(1) Hook the tip of the tether clip on the trim panel - front pillar UPR.

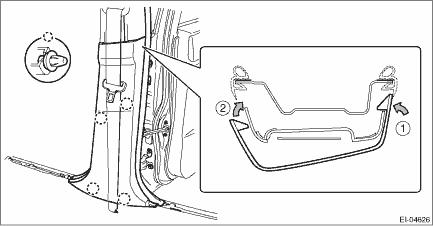

(2) Rotate the trim panel - front pillar UPR in the arrow direction as shown in the figure.

(3) Insert the claw at the end of the trim panel - front pillar UPR, and engage the clip.

3. Install the trim panel - center pillar UPR.

Tightening torque:

Trim panel - center pillar UPR: 7.5 N·m (0.8 kgf-m, 5.5 ft-lb)

Front seat belt anchor: 30 N·m (3.1 kgf-m, 22.1 ft-lb)

4. Install the trim panel - center pillar LWR, cover side sill - front, and cover side sill - rear.

NOTE:

Assemble the trim panel - center pillar LWR to the trim panel - center pillar UPR securely.

5. Install the rear seat cushion assembly.
