Subaru Legacy Service Manual: Installation

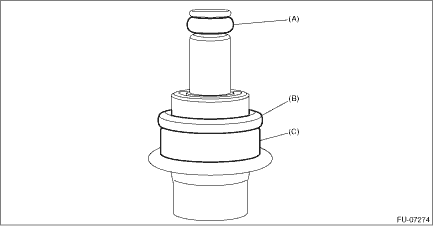

1. Install O-ring (A), O-ring (B), and backup ring (C) to the pressure regulator.

NOTE:

Use new O-rings.

Apply gasoline to the O-ring and backup ring.

2. Install the pressure regulator to the fuel filter assembly.

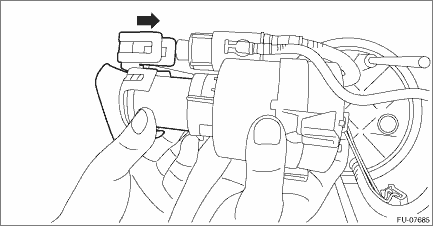

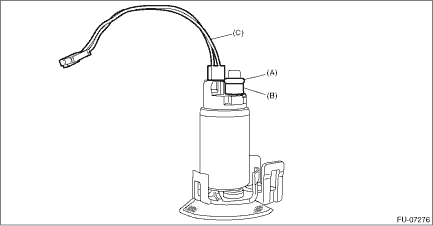

3. Install O-ring (A), spacer (B), and fuel pump harness (C) to the fuel pump.

NOTE:

Use a new O-ring and fuel pump harness.

Apply gasoline to the O-rings and the spacer.

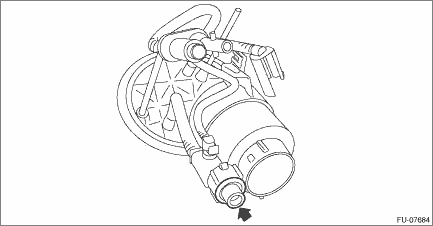

4. Install the fuel pump to the fuel filter assembly.

NOTE:

After installation, make sure five claws are correctly engaged in each position.

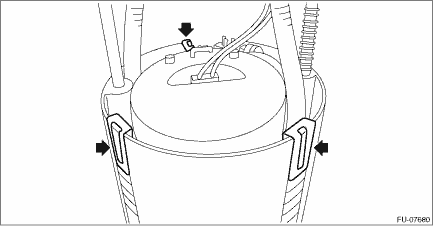

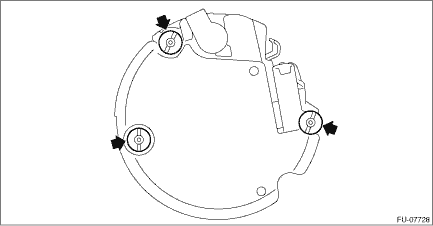

5. Check that the cushions of the fuel chamber assembly for dislocation. If any of them is dislocated, install a new cushion.

6. Slowly press in and install the tube assembly to the fuel chamber assembly until a clicking sound is heard.

7. Install the tube assembly to the fuel chamber assembly, and connect the tube assembly to the fuel chamber assembly.

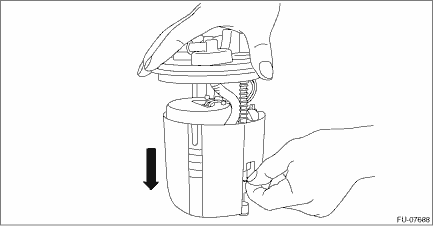

8. Install the fuel filter assembly to the fuel chamber assembly.

NOTE:

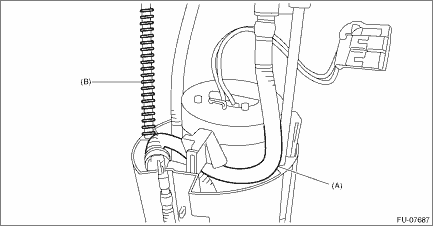

Set the tube (A) and spring (B) for the fuel filter assembly as shown in the figure.

Check that the claw connecting the fuel camber assembly and the fuel filter assembly is securely fastened.

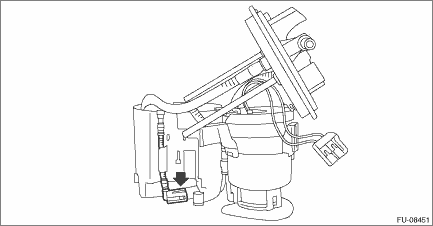

9. Push the fuel filter assembly in the direction of the arrow to compress, and attach the clip.

NOTE:

Use a new clip.

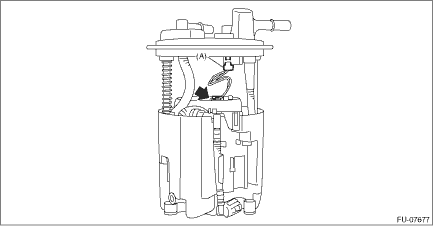

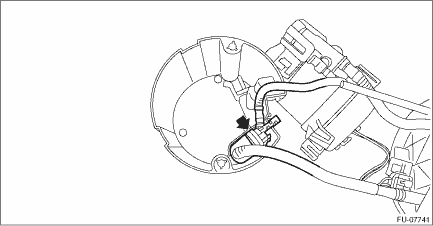

10. Secure the fuel pump harness with the clip, and connect the connector (A) of the fuel pump harness.

11. Install the fuel level sensor. Fuel Level Sensor > INSTALLATION

12. Inspect the fuel level sensor. Fuel Level Sensor > INSPECTION

13. Install the fuel pump assembly. Fuel Pump > INSTALLATION

Removal
WARNING:Place “NO OPEN FLAMES” signs near the working area.CAUTION:• Be careful not to spill fuel.• If the fuel gauge indicates that two thirds or more of the fuel is remaining ...
