Subaru Legacy Service Manual: Installation

1. PULSATION DAMPER RH

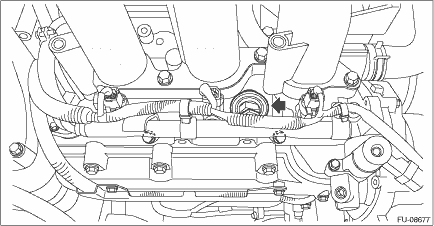

1. Install the pulsation damper RH to the fuel injector pipe RH.

NOTE:

Use a new gasket.

Tightening torque:

21.6 N·m (2.2 kgf-m, 15.9 ft-lb)

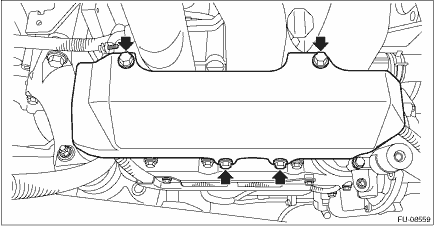

2. Install the fuel pipe protector RH.

Tightening torque:

19 N·m (1.9 kgf-m, 14.0 ft-lb)

3. Install the air intake boot. Air Intake Boot > INSTALLATION

4. Connect the ground terminal to battery sensor. NOTE

5. Install the collector cover.

2. PULSATION DAMPER LH

1. Install the pulsation damper LH to the fuel injector pipe LH.

NOTE:

Use a new gasket.

Tightening torque:

21.6 N·m (2.2 kgf-m, 15.9 ft-lb)

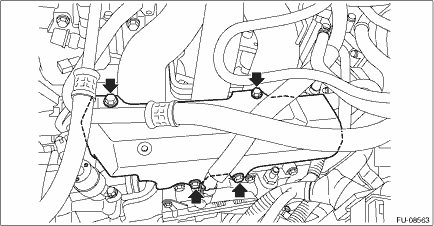

2. Install the fuel pipe protector RH.

Tightening torque:

19 N·m (1.9 kgf-m, 14.0 ft-lb)

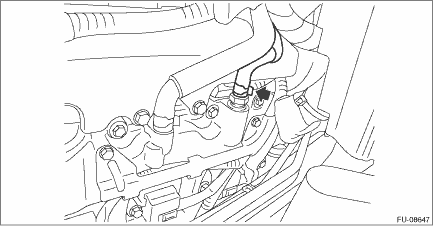

3. Connect the PCV hose.

4. Install the clip (F) securing the generator cord to the fuel pipe protector LH.

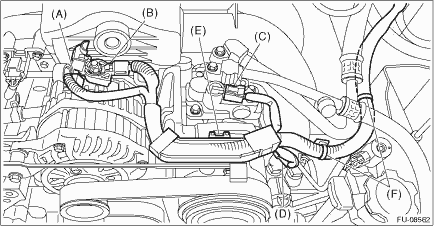

5. Connect the connectors (C) and (D) to the A/C compressor and attach the generator cord to clip (E).

6. Connect the connector (A) and terminal (B) to the generator.

Tightening torque:

15 N·m (1.5 kgf-m, 11.1 ft-lb)

7. Connect the ground terminal to battery sensor. NOTE

8. Install the collector cover.

Inspection
Check that the pulsation damper has no deformation, cracks or other damages. ...
