Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

1. OIL PAN LOWER

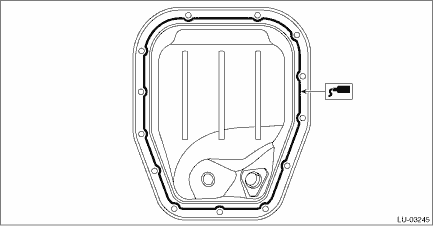

1. Apply liquid gasket to the mating surface of oil pan lower, and install the oil pan lower.

NOTE:

Before installing the oil pan lower, wipe and clean the mating surface of the oil pan lower and oil pan upper.

Use a new oil pan seal ring.

Install within 5 min. after applying liquid gasket.

Liquid gasket:

THREE BOND 1217G (Part No. K0877Y0100), THREE BOND 1217H or equivalent

Liquid gasket applying diameter:

5±1 mm (0.197±0.039 in)

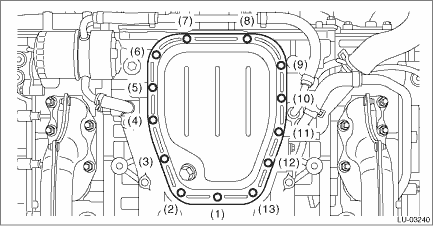

2. Tighten the bolts securing the oil pan lower to the oil pan upper in the numerical order.

Tightening torque:

6.4 N·m (0.7 kgf-m, 4.7 ft-lb)

3. Install the under cover. Front Under Cover > INSTALLATION

4. Lower the vehicle.

5. Refill the engine oil. Engine Oil > REPLACEMENT

2. OIL PAN UPPER

For installing the oil pan upper, refer to “Cylinder Block”. Cylinder Block > INSTALLATION

Inspection
Check that the oil pan upper and oil pan lower have no deformation, cracks or other damages. ...
