Subaru Legacy Service Manual: Installation

1. FRONT CUSHION RUBBER

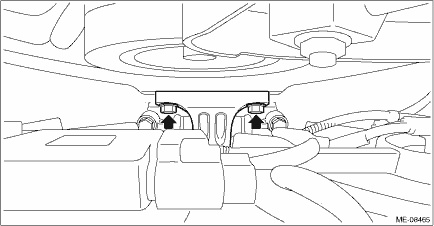

1. Set the front cushion rubber, and install the bolts securing the front cushion rubber to the chain cover.

Tightening torque:

25 N·m (2.5 kgf-m, 18.4 ft-lb)

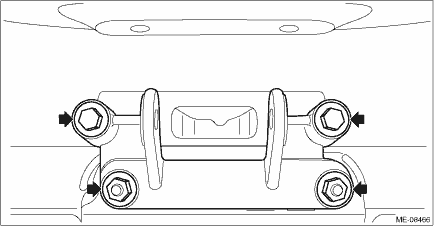

2. Install the bolts and nuts securing the front cushion rubber to the front mounting bracket.

Tightening torque:

45 N·m (4.6 kgf-m, 33.2 ft-lb)

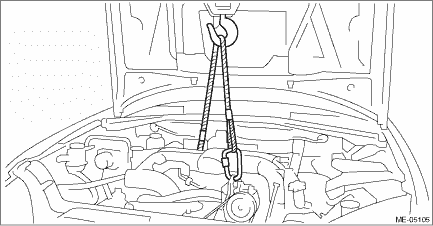

3. Remove the lifting device and wire ropes.

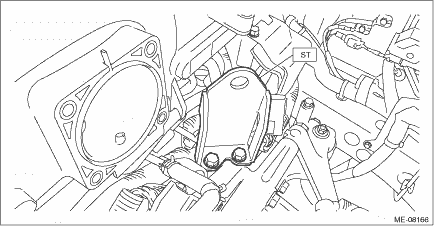

4. Remove the ST.

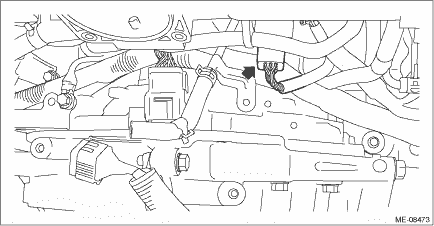

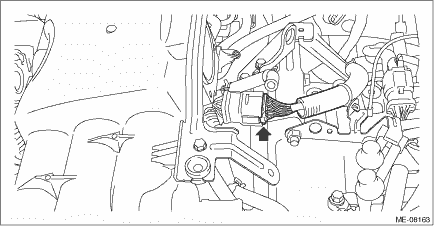

5. Connect the engine harness connector.

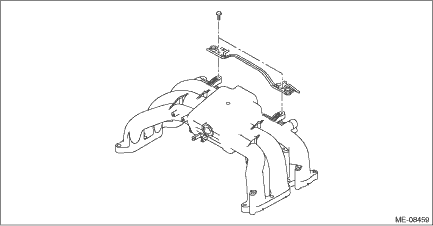

6. Install the collector cover bracket to the intake manifold.

Tightening torque:

6.5 N·m (0.7 kgf-m, 4.8 ft-lb)

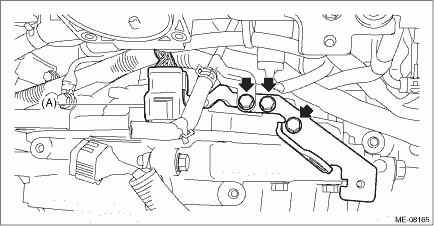

7. Install the engine hanger bracket, and install the engine harness connector (A) to the engine hanger bracket.

Tightening torque:

19 N·m (1.9 kgf-m, 14.0 ft-lb)

8. Connect the sensor harness connector.

9. Install the throttle body. Throttle Body > INSTALLATION

10. Install the air intake boot. Air Intake Boot > INSTALLATION

11. Install the air intake duct. Air Intake Duct > INSTALLATION

12. Connect the ground terminal to battery sensor. NOTE

13. Install the collector cover.

14. Set the front hood to the normal position. NOTE

15. Close the front hood.

2. FRONT MOUNTING BRACKET

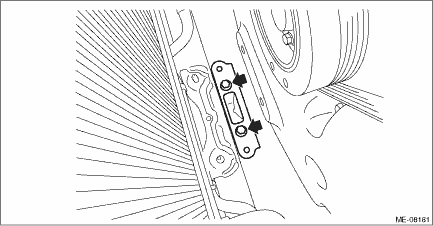

1. Install the bracket to the cradle.

Tightening torque:

65 N·m (6.6 kgf-m, 47.9 ft-lb)

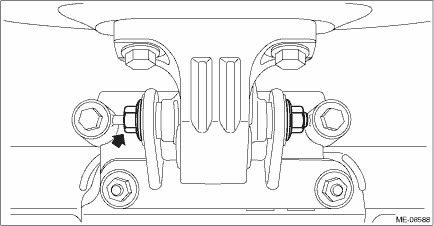

2. Install the front mounting bracket to the cradle and the bracket.

Tightening torque:

60 N·m (6.1 kgf-m, 44.3 ft-lb)

3. Install the front cushion rubber. Engine Mounting > INSTALLATION

4. Install the radiator fan and fan motor assembly. Radiator Fan and Fan Motor Assembly > INSTALLATION

Inspection
Check that the engine mounting does not have deformation, cracks and any other damage. ...
