Subaru Legacy Service Manual: Installation

1. Install the air cleaner case bracket to the vehicle.

Tightening torque:

7.5 N·m (0.8 kgf-m, 5.5 ft-lb)

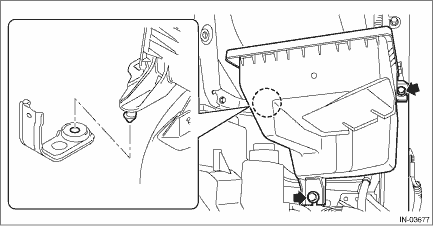

2. Install the air cleaner case (front) to the vehicle body and air cleaner case bracket.

NOTE:

Make sure that the protrusion of the air cleaner case (front) is inserted in the cushion of the air cleaner case bracket.

Tightening torque:

6 N·m (0.6 kgf-m, 4.4 ft-lb)

3. Install the air cleaner element. Air Cleaner Element > INSTALLATION

Inspection
1. Check that the air cleaner case has no deformation, cracks or other damages.2. Check that the air intake boot has no cracks, damage or loose part. ...
