Subaru Legacy Service Manual: Installation

CAUTION:

If the steering wheel and steering angle sensor are removed, perform “VDC sensor midpoint setting mode” of the VDC. VDC Control Module and Hydraulic Control Unit (VDCCM&H/U) > ADJUSTMENT

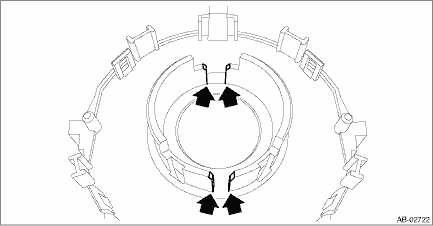

1. Before attaching a new roll connector, apply a thin coat of grease contained in the connector onto the areas shown by the arrows.

2. Install the cover assembly - column.

3. Install the roll connector.

4. Align the center position of the steering roll connector. Roll Connector > ADJUSTMENT

5. Install the steering wheel.

Tightening torque:

Steering wheel: 39 N·m (4.0 kgf-m, 28.8 ft-lb)

Clearance:

Between cover assembly - column and steering wheel: 4 — 6 mm (0.16 — 0.24 in)

6. Install the driver’s airbag module. Driver’s Airbag Module > INSTALLATION

7. Connect the ground terminal to battery sensor. NOTE

8. Perform the neutral position setting of the steering angle sensor. VDC Control Module and Hydraulic Control Unit (VDCCM&H/U) > ADJUSTMENT

Adjustment
CAUTION:• Do not rotate the roll connector to more than the specified number of turns. Otherwise, the roll connector internal wire may be broken.• When determining the end stop, rotate the ...

Inspection
1. VISUAL INSPECTIONCheck for the following, and replace the damaged parts with new parts.• Combination switch is cracked or deformed.• Roll connector is cracked or deformed.2. UNIT INSPEC ...
