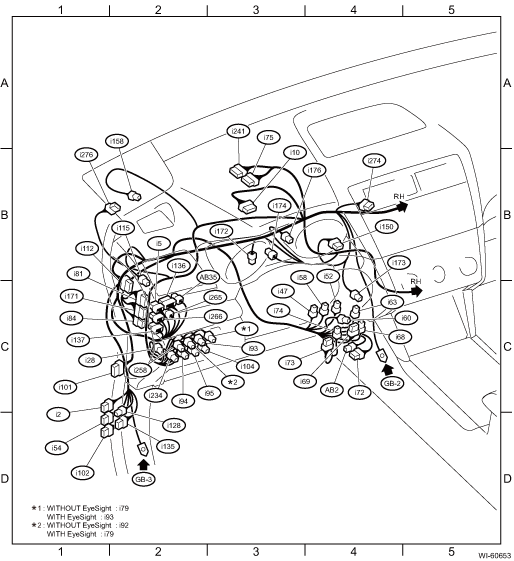

Subaru Legacy BN/BS (2015-2019) Service Manual: Instrument panel wiring harness lh location

AB2

4

Y

C-4

AB7

Driver's airbag module

AB35

2

C-2

F/B

i2

12

C-1

R339

Rear wiring harness LH

i5

16

L

C-2

F/B

i10

40

B

B-3

Combination meter

i28

8

C-2

OP connector (fog light switch)

i47

7

B

C-4

Steering lock CM

i52

2

B

C-4

Key lock solenoid (without push button start)

i54

18

Gr

D-1

R99

Rear wiring harness LH

i58

8

C-4

Ignition switch (without push button start)

i60

7

B

C-4

Immobilizer antenna (without push button start)

i63

2

C-4

Key warning switch

i68

7

C-4

Combination switch

i69

10

C-4

i72

14

C-4

ST1

Roll connector

i73

20

C-4

Combination switch

i74

5

C-4

Steering angle sensor

i75

24

B-3

Keyless access CM

i79

6

C-2

Illumination control switch

i81

32

B

C-2

Body integrated unit

i84

10

C-2

i92

4

Gr

C-2

SRF OFF switch

i93

4

C-2

Memory height switch

i94

8

Gr

C-2

BSD/RCTA OFF switch

i95

8

L

C-2

Lane departure warning OFF switch (with EyeSight)

i101

46

C-2

D84

Front door cord LH

i102

12

B

D-1

R167

Rear wiring harness LH

i104

8

G

C-2

Pre-collision brake OFF switch (with EyeSight)

i112

84

C-2

B60

Bulkhead wiring harness

i115

6

Y

C-2

B49

i128

6

D-2

R40

Rear wiring harness LH

i135

18

L

D-2

R48

i136

40

Gr

C-2

F/B

i137

12

Br

C-2

i150

14

B

B-4

Push button ignition switch

i158

4

B-2

Side tweeter LH

i171

40

C-2

Body integrated unit

i172

2

B-3

Evaporator sensor

i173

2

C-4

In-vehicle sensor

i174

7G

G

B-3

Air mix door actuator LH (auto A/C)

7

G

B-3

Air mix door actuator (manual A/C)

i176

5

G

B-3

Mode door actuator

i234

8

B

C-2

VDC OFF switch

i241

40

B-3

Keyless access CM

i258

4

Gr

C-2

Lower cover switch (trunk lid opener) (sedan model)

4

Gr

C-2

Power rear gate driver's switch

i265

8

C-2

F/B

i266

12

C-2

i274

16

B-4

J/C

i276

10

B-2

Adapter code

:White or natural color
