1. AUDIO AND NAVIGATION SYSTEM

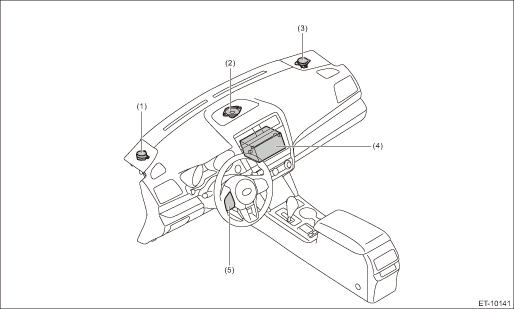

(1)	Speaker ASSY - tweeter LH	(3)	Speaker ASSY - tweeter RH	(5)	Satellite switch assembly
(2)	Speaker ASSY - center	(4)	Audio ASSY or navigation ASSY

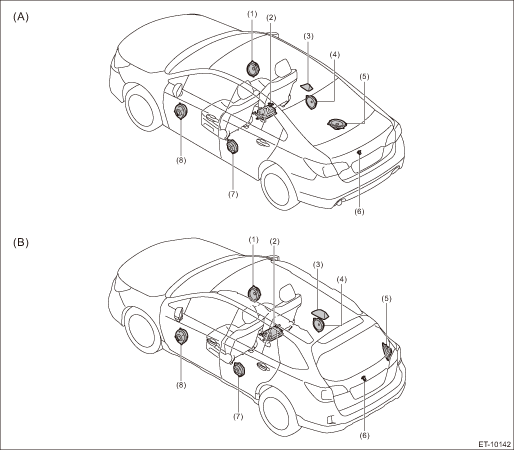

(A)	Sedan model	(B)	OUTBACK model

(1)	Front door speaker ASSY RH	(4)	Rear door speaker ASSY RH	(7)	Rear door speaker ASSY LH
(2)	Power amplifier - ASSY	(5)	Woofer ASSY	(8)	Front door speaker ASSY LH
(3)	Antenna ASSY - roof	(6)	Rearview camera ASSY

2. TELEMATICS SYSTEM

Refer to “LOCATION” of “TELEMATICS SYSTEM (DIAGNOSTICS)” section. Electrical Component Location > LOCATION
