Subaru Legacy Owners Manual: Models without "keyless access with push-button start system"

Subaru Legacy Owners Manual / Starting and operating / Remote engine start system (dealer option) / Models without "keyless access with push-button start system"

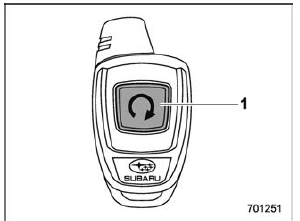

Remote engine starter transceiver (fob)
Remote engine starter transceiver (fob)

1) Fob button

Starting the engine

NOTE All vehicle doors (including rear gate/ trunk lid) and the engine hood must be closed prior to activating the remote engine start system. Any open entry point will prevent starting or cause the engine to stop.

The remote engine start system is activated by pressing the fob button on your remote engine starter transceiver (fob) twice within 3 seconds. If the fob is within operating range of the system and the start request is received, the following will occur.

  •  The fob flashes and beeps once.
  •  The horn sounds once.
  •  The side marker lights, tail lights, and parking lights flash once.

If the fob is not within range (the user is too far away from the vehicle), the fob will indicate two long flashes without beeping.

The system will check certain safety preconditions before starting, and if all conditions are met, the engine will start within 5 seconds. After the engine starts, the following will occur.

  •  The fob flashes and beeps twice.
  •  The horn sounds once.
  •  The side marker lights, tail lights, and parking lights flash once.

While the engine is idling via the remote engine start system, the following will occur.

  •  The side marker lights, tail lights, and parking lights remain illuminated.
  •  The fob button flashes once every 3 seconds.
  •  The power windows are disabled.

If the engine turns over but does not start (or starts and stalls) the remote engine start system will power off and then attempt to start the engine 3 additional times. The system will not attempt to restart the engine if it determines a vehicle malfunction is preventing starting. If the engine does not start after 3 additional attempts, the remote engine start request will be aborted.

Stopping the engine

Press and hold the fob button for at least 2 seconds to stop the engine. The fob will flash and beep three times, indicating the engine has stopped. If the stop request is not received (for example, if the user is too far away from the vehicle), the fob will continue to flash once every 3 seconds.

The system will automatically stop the engine after 15 minutes.

Remote start safety features

For safety and security reasons, the remote engine start system will prevent starting (or stop the engine if running) and sound the horn twice if any of the following conditions is detected. In addition, the fob will flash and beep 3 times.

  •  The brake pedal is depressed
  •  A key is in the ignition switch
  •  The engine hood is open
  •  The remote start system "Service mode" is engaged
  •  The engine idle speed exceeds 3,500 RPM
  •  The security alarm is triggered
  •  The select lever is not in the "P" position

If the system detects any door (including the rear gate/trunk lid) open during operation, it will prevent starting or stop the engine, and sound the horn and flash side marker lights, tail lights, and parking lights 6 times.

In addition to the items above, if the vehicle's engine management system determines there is a safety risk due to a vehicle-related problem, the vehicle will power down and the horn will sound 3 times.

NOTE

  •  If the alarm system is armed at the time of remote engine starter activation (the security indicator light on the combination meter is flashing), the alarm system will remain armed throughout the remote start run cycle.
  •  If the alarm system is disarmed at the time of remote engine starter activation (the security indicator light on the combination meter is not flashing), the alarm system will remain disarmed throughout the remote start run cycle.

Remote start operation - fob confirmation

Your remote engine starter fob is a bidirectional transceiver that can confirm system operation with several different visual and audible indications. The fob's LED-backlit button and internal piezo buzzer will indicate status of the system using the following flash and beep sequences, provided the fob is within operational range of the system.

Precondition

Fob Indication

Meaning

Flash

Beep

Fob start button is being pressed Continuous while button is held down

-

The fob is transmitting an RF signal
User attempts to start engine by pressing fob button twice within 3 sec 1 flash 1 beep Engine start request received
2 flashes 2 beeps Engine started successfully
1 flash every 3 sec

-

Engine idling
2 flashes 3 beeps Vehicle is in range but engine not started
2 long flashes - Vehicle not in range (engine not started)
Engine idling by remote engine start operation 1 flash every 3 sec - Engine idling
3 flashes 3 beeps Engine stopped by system timeout or for safety reasons (see sections above)
User attempts to stop engine by pressing and holding fob button for at least 2 sec. 3 flashes 3 beeps Engine stopped by user request
1 flash every 3 sec

-

Stop request not received. Engine still idling.
