Subaru Legacy Owners Manual: Operating the driver's/front passenger's window

Subaru Legacy Owners Manual / Keys and doors / Windows / Power window operation by driver / Operating the driver's/front passenger's window

Operating the driver's/front passenger's window

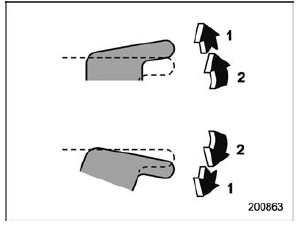

  1. Automatically open/close*
  2.  Open/close

*: For some models, the automatic open/close function (one-touch auto up/down function) is not available for the front passenger's window.

To open: Press the switch down lightly and hold it.

The window will open as long as the switch is held.

NOTE If you continue to hold the AUTO switch in the down position after the window has been fully opened, the circuit breaker may activate for a short time and the window may not operate.

Allow several seconds for the system to reset without touching the switch, and the window will begin to operate normally on its own.

This switch also has a one-touch auto down function. To open the window fully, press the switch down until it clicks and then release it. To stop the window halfway, pull the switch up lightly.

To close: Pull the switch up lightly and hold it. The window will close as long as the switch is held.

NOTE If you continue to hold the AUTO switch in the up position after the window has fully closed, the circuit breaker may open and the system may not operate. After several seconds, the window will be able to be opened by holding the switch down until it is fully opened. The AUTO function will not operate. The window can be raised by pulling up on the switch several times until the window is fully closed.

To reset to normal operation, initialize the power window to reactivate the one-touch auto up/down function. Refer to "Initialization of power window" .

This switch also has a one-touch auto up function. To close the window fully, pull the switch up until it clicks and then release it.

To stop the window halfway, press the switch down lightly.

NOTE If the vehicle's battery is disconnected due to situations such as battery or fuse replacement, the one-touch auto up/down function will be deactivated.

Initialize the power window to reactivate the one-touch auto up/down function.

Refer to "Initialization of power window" .

Anti-entrapment function

CAUTION
  •  Never attempt to test this function using fingers, hands or other parts of your body.
  •  The anti-entrapment function may not operate properly if some object gets trapped just before the window fully closes

NOTE

  •  If a window detects an impact similar to that caused by trapping an object (for example, when the vehicle encounters a deep pothole), the anti-entrapment function may operate.
  •  The window cannot be operated for a few seconds after the anti-entrapment function operates.
  •  If the vehicle's battery is disconnected due to situations such as battery or fuse replacement, the antientrapment function will be deactivated.

    Initialize the power window to reactivate the anti-entrapment function.

    Refer to "Initialization of power window" .

While closing with the one-touch auto up function, if the window senses a substantial enough object trapped between the window and the window frame, it automatically moves down slightly and stops.

Driver's side power window switches
Lock switch  For driver's window  For front passenger's window  For rear left passenger's window  For rear right passenger's window All door windows can be contro ...

Operating the rear passengers' windows
To open: Press the appropriate switch down and hold it until the window reaches the desired position. To close: Pull the switch up and hold it until the window reaches the desired position ...
