1. Clean the transmission exterior.

2. Remove the torque converter assembly. Torque Converter Assembly > REMOVAL

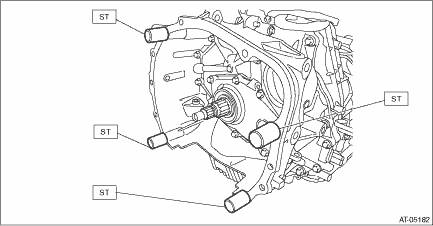

3. Attach the ST on the transmission.

ST 18632AA000

STAND ASSY

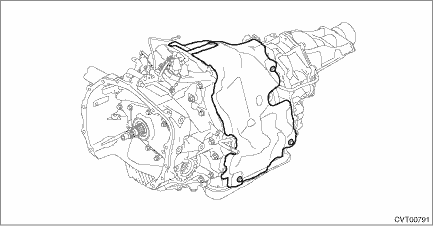

4. Remove the transmission cover on the transmission upper side.

NOTE:

Install using the following tightening torque.

Tightening torque:

8 N·m (0.8 kgf-m, 5.9 ft-lb)

5. Place the transmission assembly on end.
