Subaru Legacy Service Manual: Removal

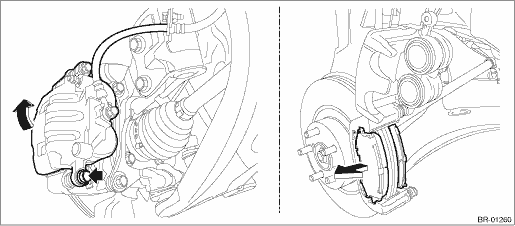

1. 16-INCH TYPE

1. Lift up the vehicle, and then remove the front wheels.

2. Remove the pad - disc brake front.

NOTE:

Do not disconnect the brake hose from the caliper body assembly.

(1) Remove the caliper bolt on the lower side.

(2) Lift the caliper body assembly.

(3) Remove the spring - brake pad and the pad - disc brake front.

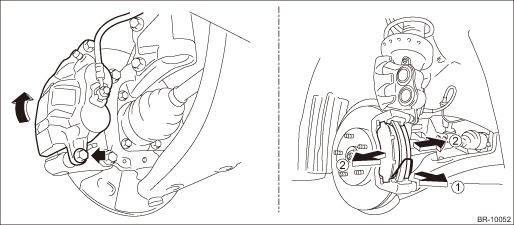

2. 17-INCH TYPE

1. Lift up the vehicle, and then remove the front wheels.

2. Remove the pad - disc brake front.

(1) Remove the caliper bolt on the lower side.

(2) Raise the caliper body assembly and remove the pad - disc brake front.

NOTE:

Do not disconnect the brake hose from the caliper body assembly.

Inspection
1. Check the thickness (A) of the pad - disc brake front.NOTE:• Always replace the pads of both wheels and both sides as a set.• Replace pad clips if they are twisted or worn.• Repla ...

Installation
1. 16-INCH TYPENOTE:Before installation, remove mud and foreign matter from the caliper body assembly and support - front disc brake.1. Check the brake pad. Front Brake Pad > INSPECTION2. Apply a thi ...
