Subaru Legacy Service Manual: Removal

1. Release the parking brake.

2. Using the Subaru Select Monitor, go to the brake maintenance mode according to the display screen. Parking Brake System > OPERATION

NOTE:

For detailed operation procedures, refer to “Application help”.

3. Disconnect the ground terminal from battery sensor. NOTE

4. Lift up the vehicle, and then remove the rear wheels.

5. Remove the pad - disc brake rear.

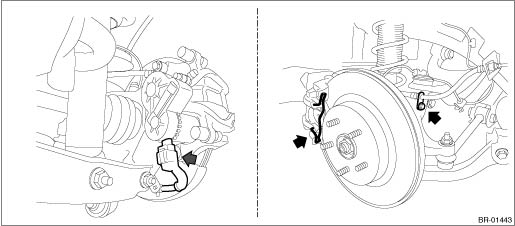

(1) Disconnect the connector.

(2) Remove the pad clip and the brake hose bracket.

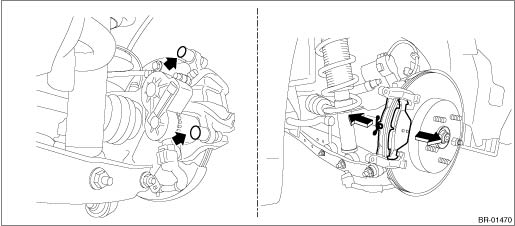

(3) Remove the cap and the caliper bolt, and remove the caliper body assembly.

(4) Remove the pad - disc brake rear.

Preparation tool:

Hexagon wrench: 7 mm (0.28 in)

Inspection
1. Check the thickness of the pad - disc brake rear.NOTE:• Always replace the pads of both wheels and both sides as a set.• Replace pad clips if they are twisted or worn.• Replace th ...

Installation
NOTE:Before installation, remove mud and foreign matter from the disc brake assembly.1. Install the pad - disc brake rear.2. Install the caliper body assembly.Tightening torque:Caliper bolt: 25 N&midd ...
