Subaru Legacy Service Manual: Removal

CAUTION:

If the CVTF and engine coolant is spilt over exhaust pipe, wipe it off with cloth to avoid emitting smoke or causing a fire.

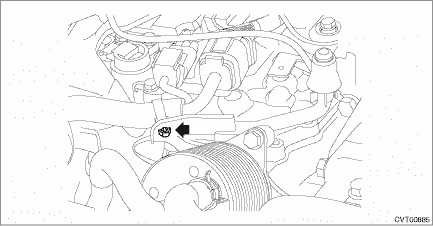

1. Disconnect the ground terminal from battery sensor. NOTE

2. Drain engine coolant. Engine Coolant > REPLACEMENT

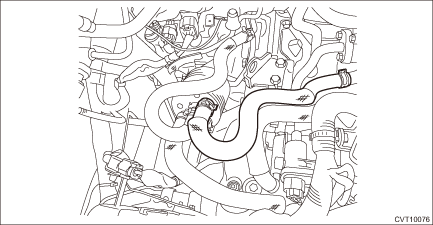

3. Remove the clip (A), and loosen the clamps (B) and (C).

4. Remove the air intake boot assembly, and move it to the left side wheel apron.

5. Remove the harness clip.

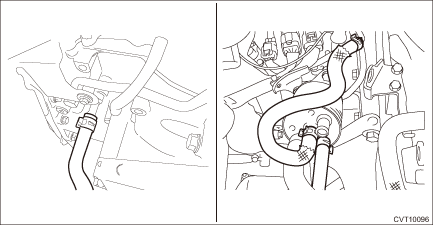

6. Remove the engine coolant outlet hose.

Without CVTF cooler (air cool)

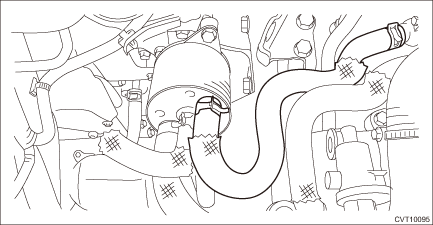

With CVTF cooler (air cool)

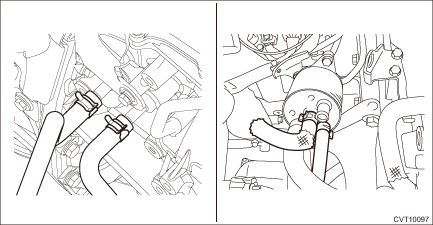

7. Remove the CVTF inlet hose and outlet hose.

Without CVTF cooler (air cool)

With CVTF cooler (air cool)

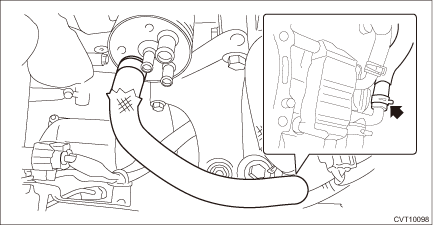

8. Remove the engine coolant inlet hose.

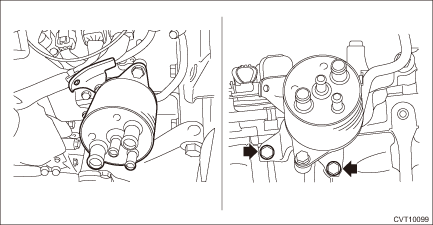

9. Remove the CVTF cooler (with warmer feature).

Cvtf cooler (with warmer function)
...

Assembly
1. Install the harness stay.Tightening torque:23 N·m (2.3 kgf-m, 17.0 ft-lb)2. Install the CVTF cooler (with warmer feature).Tightening torque:23 N·m (2.3 kgf-m, 17.0 ft-lb) ...
