Subaru Legacy Service Manual: Removal

1. Remove the transmission assembly. Automatic Transmission Assembly > REMOVAL

2. Remove the air breather hose. Air Breather Hose > REMOVAL

3. Remove the control valve body. Control Valve Body > REMOVAL

4. Remove the transmission harness. Transmission Harness > REMOVAL

5. Remove the turbine speed sensor. Turbine Speed Sensor > REMOVAL

6. Remove the secondary speed sensor. Secondary Speed Sensor > REMOVAL

7. Remove the primary speed sensor. Primary Speed Sensor > REMOVAL

8. Remove the inhibitor switch. Inhibitor Switch > REMOVAL

9. Remove the extension case. Extension Case > REMOVAL

10. Remove the transfer clutch assembly. Transfer Clutch > REMOVAL

11. Remove the transfer driven gear assembly. Transfer Driven Gear > REMOVAL

12. Remove the parking pawl. Parking Pawl > REMOVAL

13. Remove the reduction driven gear assembly. Reduction Driven Gear > REMOVAL

14. Remove the oil pan and oil strainer. Oil Pan and Strainer > REMOVAL

15. Remove the transmission control device. Transmission Control Device > REMOVAL

16. Remove the transmission case. Transmission Case > REMOVAL

17. Remove the reduction drive gear. Reduction Drive Gear > REMOVAL

18. Remove the primary pulley, secondary pulley and variator chain. Primary Pulley and Secondary Pulley > REMOVAL

19. Remove the reverse brake assembly. Reverse Brake Assembly > REMOVAL

20. Remove the forward clutch assembly. Forward Clutch Assembly > REMOVAL

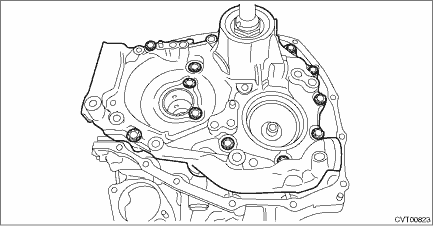

21. Using the ST, remove the drive pinion retainer.

ST 18270KA020SOCKET (E20)

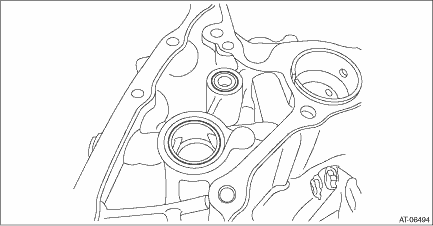

22. Remove the O-rings.

Drive pinion shaft assembly
...

Adjustment
1. Remove the liquid gasket from the mating surface completely.2. Using the ST, install the drive pinion retainer to converter case.ST 18270KA020SOCKET (E20)NOTE:Do not confuse the three different- ...
