Subaru Legacy Service Manual: Removal

1. Remove the transmission assembly. Automatic Transmission Assembly > REMOVAL

2. Remove the air breather hose. Air Breather Hose > REMOVAL

3. Remove the control valve body. Control Valve Body > REMOVAL

4. Remove the transmission harness. Transmission Harness > REMOVAL

5. Remove the turbine speed sensor. Turbine Speed Sensor > REMOVAL

6. Remove the secondary speed sensor. Secondary Speed Sensor > REMOVAL

7. Remove the primary speed sensor. Primary Speed Sensor > REMOVAL

8. Remove the inhibitor switch. Inhibitor Switch > REMOVAL

9. Remove the extension case. Extension Case > REMOVAL

10. Remove the transfer clutch assembly. Transfer Clutch > REMOVAL

11. Remove the transfer driven gear assembly. Transfer Driven Gear > REMOVAL

12. Remove the parking pawl. Parking Pawl > REMOVAL

13. Remove the reduction driven gear assembly. Reduction Driven Gear > REMOVAL

14. Remove the oil pan and oil strainer. Oil Pan and Strainer > REMOVAL

15. Remove the transmission control device. Transmission Control Device > REMOVAL

16. Remove the transmission case. Transmission Case > REMOVAL

17. Remove the reduction drive gear. Reduction Drive Gear > REMOVAL

18. Remove the primary pulley, secondary pulley and variator chain. Primary Pulley and Secondary Pulley > REMOVAL

19. Remove the reverse brake assembly. Reverse Brake Assembly > REMOVAL

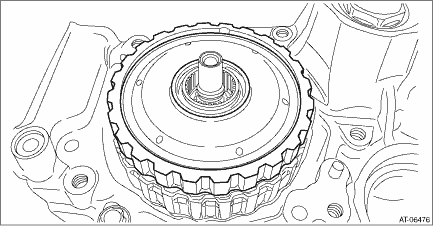

20. Remove the internal gear.

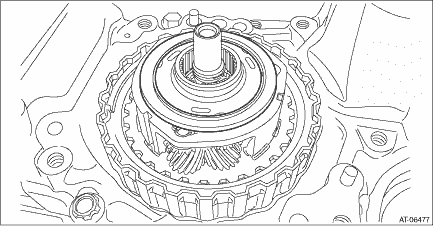

21. Remove the thrust bearing.

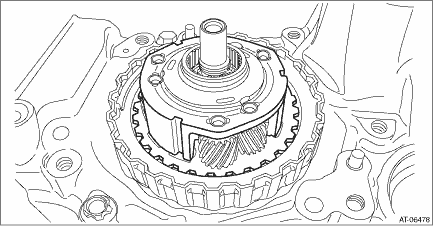

22. Remove the planetary carrier.

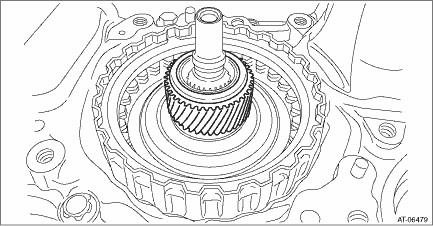

23. Remove the thrust bearing and sun gear.

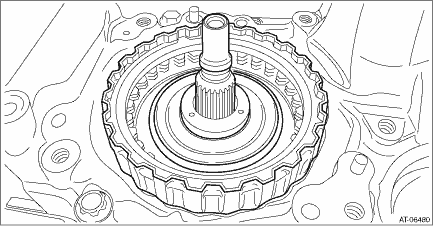

24. Remove the forward clutch assembly.

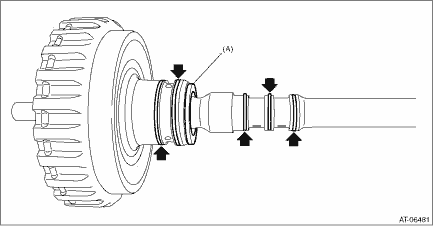

25. Remove the thrust bearing and seal ring.

(A)

Thrust bearing

Forward clutch assembly
...

Adjustment
1. Install the thrust bearing to the internal gear.NOTE:Face the temper color surface to the reverse brake side.2. Measure depth “A” from the ST upper face to the washer mounting surface.S ...
