Subaru Legacy Service Manual: Removal

1. Remove the transmission assembly. Automatic Transmission Assembly > REMOVAL

2. Remove the air breather hose. Air Breather Hose > REMOVAL

3. Remove the control valve body. Control Valve Body > REMOVAL

4. Remove the transmission harness. Transmission Harness > REMOVAL

5. Remove the turbine speed sensor. Turbine Speed Sensor > REMOVAL

6. Remove the secondary speed sensor. Secondary Speed Sensor > REMOVAL

7. Remove the primary speed sensor. Primary Speed Sensor > REMOVAL

8. Remove the inhibitor switch. Inhibitor Switch > REMOVAL

9. Remove the extension case. Extension Case > REMOVAL

10. Remove the transfer clutch assembly. Transfer Clutch > REMOVAL

11. Remove the transfer driven gear assembly. Transfer Driven Gear > REMOVAL

12. Remove the parking pawl. Parking Pawl > REMOVAL

13. Remove the reduction driven gear assembly. Reduction Driven Gear > REMOVAL

14. Remove the oil pan and oil strainer. Oil Pan and Strainer > REMOVAL

15. Remove the transmission control device. Transmission Control Device > REMOVAL

16. Remove the transmission case. Transmission Case > REMOVAL

17. Remove the reduction drive gear. Reduction Drive Gear > REMOVAL

18. Remove the primary pulley, secondary pulley and variator chain. Primary Pulley and Secondary Pulley > REMOVAL

19. Remove the reverse brake assembly. Reverse Brake Assembly > REMOVAL

20. Remove the forward clutch assembly. Forward Clutch Assembly > REMOVAL

21. Remove the drive pinion shaft assembly. Drive Pinion Shaft Assembly > REMOVAL

22. Remove the oil baffle.

23. Remove the lock plates on both sides.

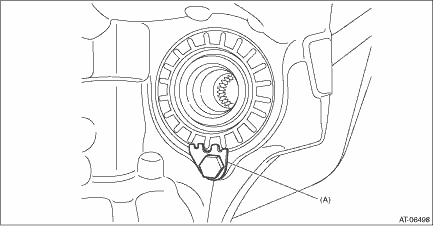

(A)

Lock plate

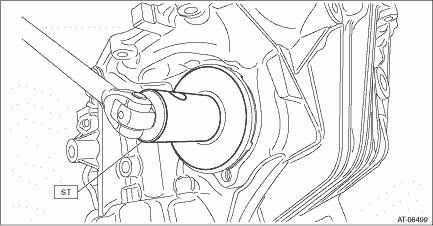

24. Remove the differential side retainers using ST.

NOTE:

When the wrench COMPL retainer interferes with the converter case, align the cutout portion with the interference part.

Support the differential case assembly by hand to avoid damaging the retainer mounting hole of the converter case.

Keep the left and right differential side retainers and left and right bearing outer races by attaching tags or in similar ways to make it possible to identify RH and LH sides.

ST 18658AA020WRENCH COMPL RETAINER

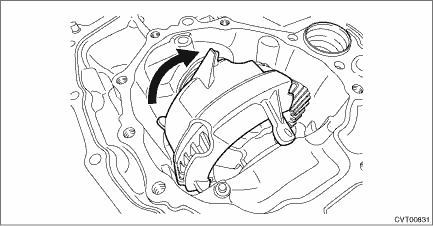

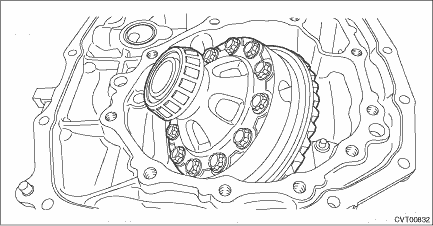

25. Remove the front differential assembly while being careful not to damage the attachment part of the retainer.

26. Remove the oil seals and O-rings from both differential side retainers. Front Differential Assembly > DISASSEMBLY

Front differential assembly
...

Adjustment
1. Using the ST, screw-in the retainer until resistance is felt.NOTE:RH side should be screwed-in more than LH side.ST 18658AA020WRENCH COMPL RETAINER2. Remove the remaining liquid gasket from the ...
