Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr580) / Inhibitor switch / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. While pressing the shift lock release button, shift the select lever to the “N” range.

3. Lift up the vehicle.

4. Remove the center exhaust pipe. Center Exhaust Pipe > REMOVAL

5. Remove the snap pin and washer.

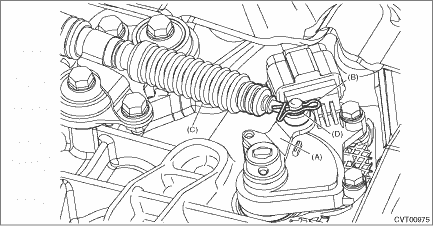

(A)	Shifter arm
(B)	Snap pin
(C)	Select cable
(D)	Washer

6. Remove the spring pin and shifter arm.

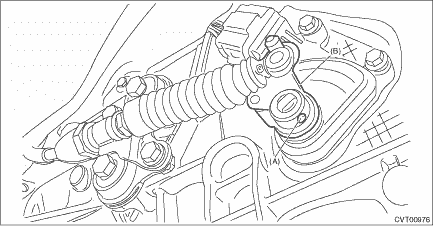

(A)	Spring pin
(B)	Shifter arm

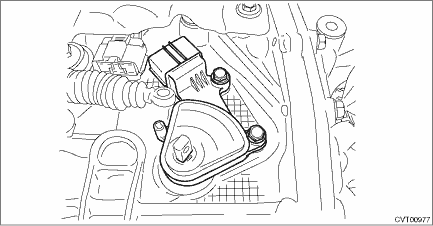

7. Disconnect the inhibitor harness connector.

8. Remove the inhibitor switch.
