Subaru Legacy Service Manual: Removal

1. Remove the transmission assembly. Automatic Transmission Assembly > REMOVAL

2. Remove the inhibitor switch. Inhibitor Switch > REMOVAL

3. Remove the oil pan and oil strainer. Oil Pan and Strainer > REMOVAL

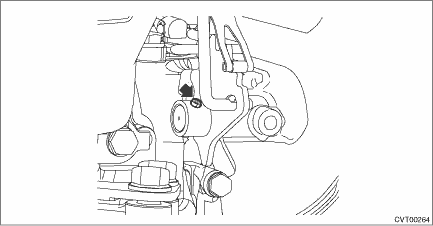

4. Shift the manual plate to “N” range, and remove the spring pin.

NOTE:

Prevent the spring pin from dropping in the transmission using paper towel etc.

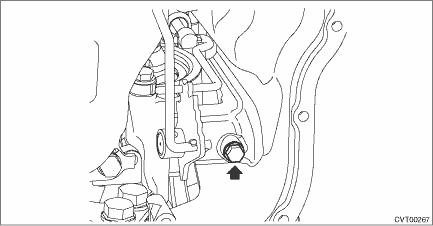

5. Remove the detent spring.

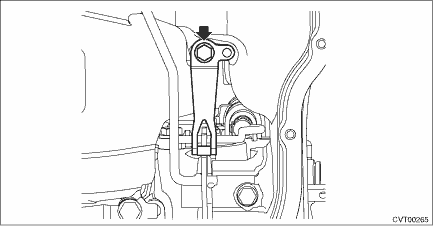

6. Remove the bolt, and remove the shifter arm shaft.

NOTE:

Do not damage the lip of oil seal press-fitted in the case.

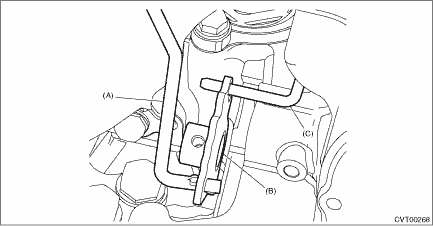

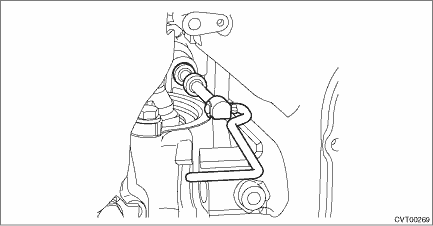

7. Remove the manual plate from the shifter arm shaft, and remove the shift connecting rod of the manual valve.

(A)

Parking rod

(B)

Manual plate

(C)

Shift connecting rod

8. Remove the manual plate and parking rod.

9. Remove the manual valve.

10. Remove the extension case. Extension Case > REMOVAL

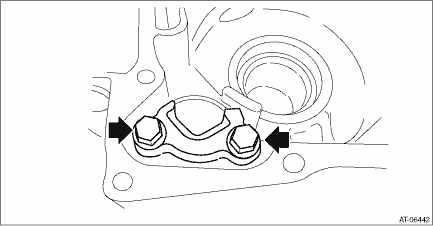

11. Remove the parking support.

Transmission control device
...

Inspection
Make sure that the manual plate and detent spring are not worn or otherwise damaged. ...
