Subaru Legacy Service Manual: Removal

CAUTION:

Be sure to prevent water or oil from contacting the connector terminal of turbine speed sensor. If adhesion occurs, replace with a new part.

1. Disconnect the ground terminal from battery sensor. NOTE

2. Lift up the vehicle.

3. Disconnect the harness connector from the turbine speed sensor.

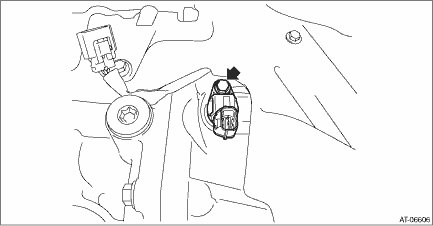

4. Remove the turbine speed sensor.

Turbine speed sensor
...
