Subaru Legacy Service Manual: Removal

1. Remove the transmission assembly from the vehicle. Automatic Transmission Assembly > REMOVAL

2. Remove the air breather hose. Air Breather Hose > REMOVAL

3. Remove the oil pan and control valve body. Control Valve Body > REMOVAL

4. Remove the transmission harness. Transmission Harness > REMOVAL

5. Remove the extension case. Extension Case > REMOVAL

6. Remove the rear drive shaft. Rear Drive Shaft > REMOVAL

7. Remove the transfer clutch assembly. Transfer Clutch > REMOVAL

8. Remove the transfer reduction driven gear assembly. Transfer Reduction Driven Gear > REMOVAL

9. Remove the intermediate case. Intermediate Case > REMOVAL

10. Remove the forward clutch assembly. Forward Clutch Assembly > REMOVAL

11. Remove the transmission case. Transmission Case > REMOVAL

12. Remove the primary pulley, secondary pulley and variator chain. Primary Pulley and Secondary Pulley > REMOVAL

13. Remove the drive pinion shaft assembly. Drive Pinion Shaft Assembly > REMOVAL

14. Remove the oil stopper plate and lubrication pipe.

15. Flip over the converter case.

16. Remove the oil pump chain cover and the oil pump chain. Oil Pump Chain > REMOVAL

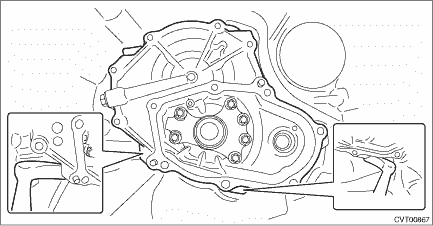

17. Remove the converter case cover.

18. Remove the O-rings.

19. Remove the seal ring from converter case cover.

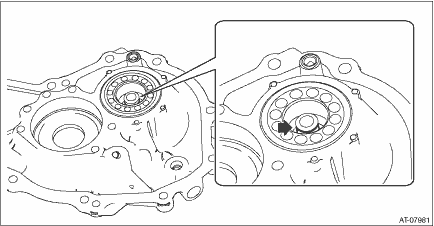

20. Using the ST, remove the ball bearing from the converter case cover.

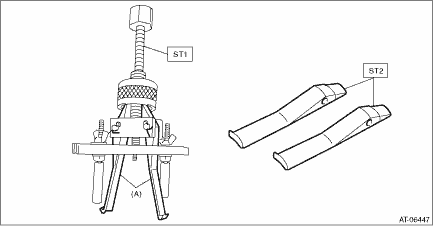

(1) Remove the claw of ST1, and attach the claw of ST2.

ST1 398527700PULLER ASSY
ST2 18760AA000CLAW

(A)

Claw

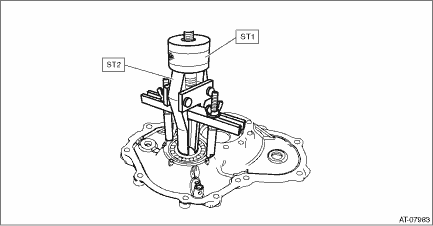

(2) Using the ST, remove the ball bearing from the converter case cover.

ST1 398527700PULLER ASSY
ST2 18760AA000CLAW

Converter case cover
...

Adjustment
When replacing the converter case cover, select the following shims.• Select the shim for front reduction drive gear. Front Reduction Drive Gear > ADJUSTMENT• Select the shim for front re ...
