Subaru Legacy Service Manual: Removal

1. Remove the transmission assembly from the vehicle. Automatic Transmission Assembly > REMOVAL

2. Remove the air breather hose. Air Breather Hose > REMOVAL

3. Remove the oil pan and control valve body. Control Valve Body > REMOVAL

4. Remove the transmission harness. Transmission Harness > REMOVAL

5. Remove the extension case. Extension Case > REMOVAL

6. Remove the rear drive shaft. Rear Drive Shaft > REMOVAL

7. Remove the transfer clutch assembly. Transfer Clutch > REMOVAL

8. Remove the transfer reduction driven gear assembly. Transfer Reduction Driven Gear > REMOVAL

9. Remove the intermediate case. Intermediate Case > REMOVAL

10. Remove the forward clutch assembly. Forward Clutch Assembly > REMOVAL

11. Remove the transmission case. Transmission Case > REMOVAL

12. Remove the primary pulley, secondary pulley and variator chain. Primary Pulley and Secondary Pulley > REMOVAL

13. Remove the drive pinion shaft assembly. Drive Pinion Shaft Assembly > REMOVAL

14. Remove the lock plates on both sides.

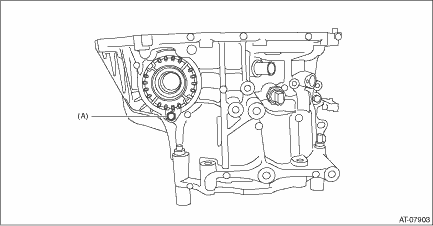

(A)

Lock plate

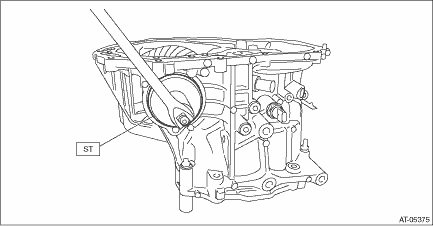

15. Remove the differential side retainers using ST.

ST 18658AA020WRENCH COMPL RETAINER

NOTE:

Support the differential case assembly by hand to avoid damaging the retainer mounting hole of the converter case.

When keeping the retainers aside, use labels etc. to avoid confusing the left and right.

16. Remove the front differential assembly while being careful not to damage the attachment part of the retainer.

17. Remove the oil seals and O-rings from both differential side retainers. Front Differential Assembly > DISASSEMBLY

Front differential assembly
...

Adjustment
1. Using the ST, screw-in the retainer until resistance is felt.NOTE:RH side should be screwed-in more than LH side.ST 18658AA020WRENCH COMPL RETAINER2. Remove the remaining liquid gasket from the ...
