Subaru Legacy Service Manual: Removal

1. Disconnect the ground terminal from battery sensor. NOTE

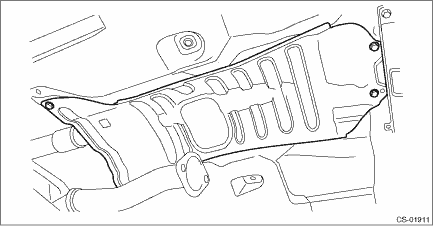

2. Lift up the vehicle.

3. Remove the center exhaust pipe. Center Exhaust Pipe > REMOVAL

4. Remove the center exhaust cover.

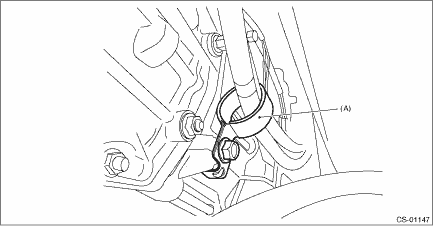

5. Remove the clamp cable and take out the MT gear shift cable from the clamp.

(A)

Clamp cable

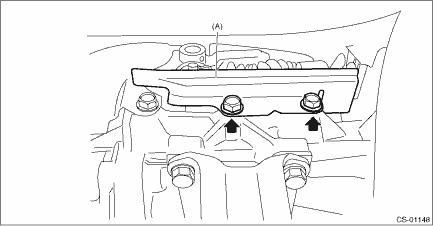

6. Remove the dust cover. (OUTBACK model)

(A)

Dust cover

7. Apply a mark on the top end of the MT gear shift cable.

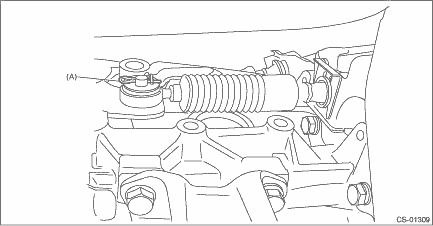

8. Remove the snap pin.

(A)

Snap pin

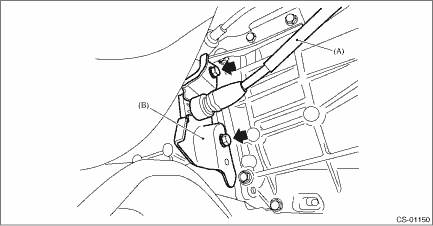

9. Remove the shift bracket together with the MT gear shift cable.

(A)

MT gear shift cable

(B)

Shift bracket

10. Remove the plate cable assembly.

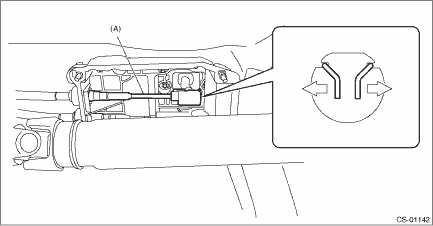

11. Remove the spring at the MT gear shift cable by expanding it and pulling down, and remove the MT gear shift cable from the gear shift lever assembly.

CAUTION:

Be careful not to deform the cable inner.

(A)

MT gear shift cable

12. Remove the clamp which holds the MT gear shift cable.

(A)

Clamp

(B)

MT gear shift cable

13. Pull out the MT gear shift cable.

Mt gear shift cable
...

Installation
1. When replacing the new MT gear shift cable, secure it to shift bracket with the clamps, be careful not to mistake the installing direction.(A)Old MT gear shift cable(B)New MT gear shift cable(C)Shi ...

Other materials:

Specification
ItemSpecificationsIgnition coilTypeFK0463Ignition systemIndependent ignition coilManufacturerDiamond ElectricSpark plugManufacturer and typeNGK: SILZKAR7B11Thread size (diameter, pitch, length)mm12, 1.25, 26.5Spark plug gapmm (in)Standard1.0 — 1.1 (0.039 — 0.043)ElectrodeIridium ...
