Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

CAUTION:

Before removing propeller shaft, wrap metal parts with a cloth or rubber material.

Do not disassemble the center EDJ of the propeller shaft.

Before removing the propeller shaft, wrap the center joint part with a cloth, etc. If the joint is bent during removal, the rubber boot may be damaged due to interference with metal parts.

1. Shift the select lever or gear shift lever to neutral.

2. Release the parking brake.

3. Lift up the vehicle.

4. Remove the front exhaust pipe.

2.5 L model: Front Exhaust Pipe > REMOVAL

3.6 L model: Front Exhaust Pipe > REMOVAL

5. Remove the rear exhaust pipe.

2.5 L model: Rear Exhaust Pipe > REMOVAL

3.6 L model: Rear Exhaust Pipe > REMOVAL

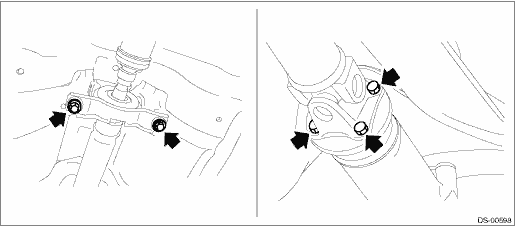

6. Remove the bolts to remove the front heat shield cover.

7. Remove the propeller shaft assembly.

CAUTION:

Do not disassemble the propeller shaft.

Use a container to catch CVTF or oil flowing from propeller shaft.

To prevent CVTF from leaking, install extension cap etc. to the transmission.

Be careful not to damage oil seals and contact surface of the sleeve yoke.

(1) Place alignment marks (A) on the flange yoke and rear differential.

(2) Remove the bolts and remove the propeller shaft from the rear differential.

(3) Remove the end of propeller shaft from the transmission.

NOTE:

Use a container to catch oil flowing from propeller shaft.

(4) Install extension cap (A) to the transmission.

NOTE:

If extension cap (A) is not available, place vinyl bag over opening and fasten with string to prevent gear oil from leaking.

Propeller shaft
...

Inspection
Check the propeller shaft with the propeller shaft installed to the vehicle.1. Shift the select lever or gear shift lever to neutral.2. Release the parking brake.3. Lift up the vehicle.4. Remove the f ...
