Subaru Legacy Service Manual: Removal

1. CONSOLE

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

2. Remove the cover assembly - front and the console box assembly. Console Box > REMOVAL

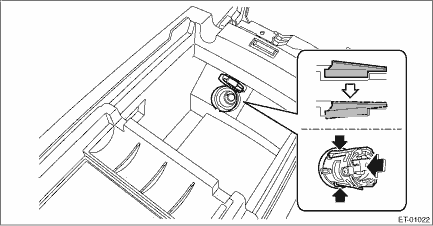

3. While releasing the claw inside, press it in from the rear to remove the socket assembly.

2. LUGGAGE ROOM

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the trim panel - rear apron LH. Rear Quarter Trim > REMOVAL

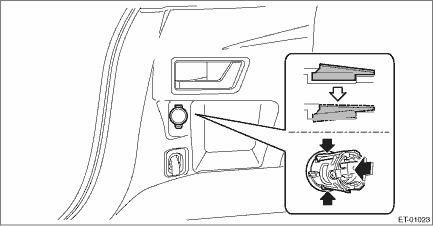

3. While releasing the claw inside, press it in from the rear to remove the socket assembly.

Installation
1. Install the socket assembly.NOTE:Align the groove of the console box assembly or the trim panel - rear apron LH with the claw of the socket assembly.2. Install the cover assembly - front console bo ...
