Subaru Legacy Service Manual: Removal

CAUTION:

Trunk lid COMPL is heavy. When removing and installing it, always work in a team of two or more persons.

1. TRUNK LID DAMPER STAY

1. Open the trunk lid COMPL.

2. Remove the stay assembly - trunk lid.

CAUTION:

Do not remove the stop ring completely. Raise it to the position enough to remove the ball stud.

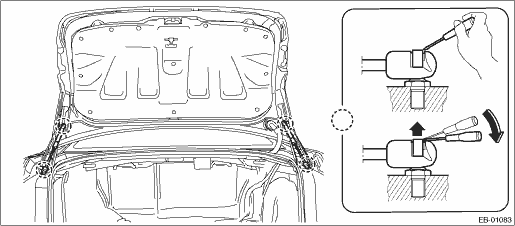

(1) Remove the stopper - hinge.

(2) Gently push the stop ring against the ball stud to be raised with a flat tip screwdriver.

(3) Pull the stay assembly - trunk lid toward you, and remove the stay assembly - trunk lid from the ball stud.

2. TRUNK LID HINGE

1. Open the trunk lid COMPL.

2. Remove the stay assembly - trunk lid. Trunk Lid > REMOVAL

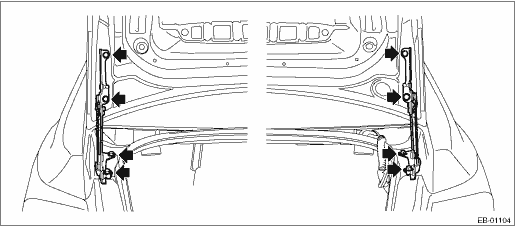

3. Remove the hinge assembly - trunk lid.

3. TRUNK LID PANEL

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the trim panel - trunk lid. Trunk Room Trim > REMOVAL

3. Remove the garnish - trunk. Trunk Lid Garnish > REMOVAL

4. Remove the key lock - trunk lid. Key Lock Cylinders > REMOVAL

5. Remove the light assembly - rear finisher. Rear Finisher Light Assembly > REMOVAL

6. Remove the license plate light. License Plate Light > REMOVAL

7. Remove the rearview camera assembly. Rearview Camera System > REMOVAL

8. Remove the rear antenna assembly - exterior. (Model with keyless access with push button start) Keyless Access Outdoor Antenna > REMOVAL

9. Remove the lock assembly - trunk lid. Trunk Lid Latch and Actuator Assembly > REMOVAL

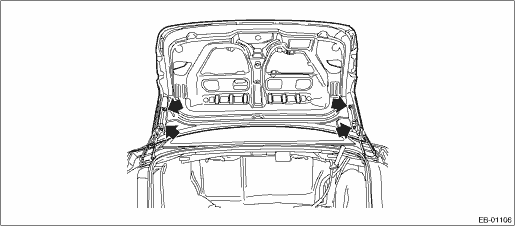

10. Remove the stopper - trunk lid LWR.

11. Disconnect the harness clip, and then pull out the harness as shown in the figure (a).

12. Remove the stay assembly - trunk lid.

CAUTION:

Do not remove the stop ring completely. Raise it to the position enough to remove the ball stud.

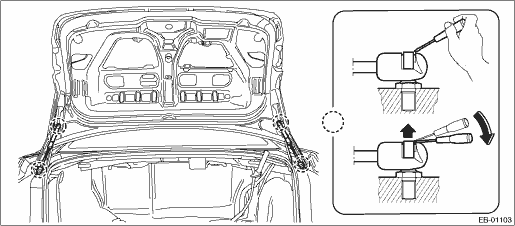

(1) Remove the stopper - hinge.

(2) Gently push the stop ring against the ball stud to be raised with a flat tip screwdriver.

(3) Pull the stay assembly - trunk lid toward you, and remove the stay assembly - trunk lid from the ball stud.

13. Remove the trunk lid COMPL.

14. Remove the hinge assembly - trunk lid from the body.
