Subaru Legacy Service Manual: Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the bumper face - front.

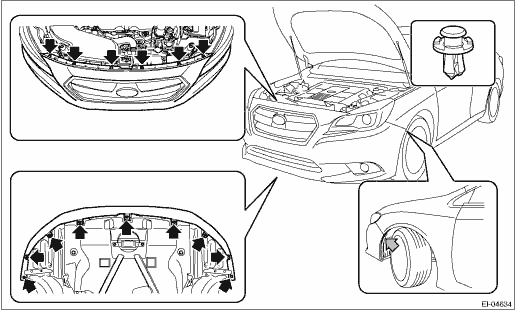

(1) Remove the clips at the upper side of the bumper face - front.

(2) Remove the clips from the fender.

(3) Remove the clips at the lower side of the bumper face - front.

(4) Disconnect the fog light assembly connector.

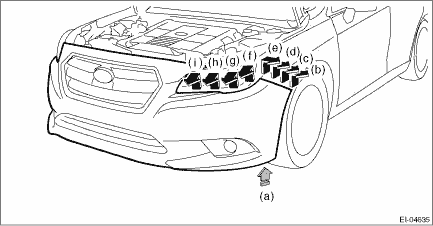

(5) While pushing up the lower side (a) of the bumper face - front, release the engagement in the order from (b) to (i).

CAUTION:

Do not pull forcibly. It may damage the flange section on the bumper face - front side when it comes off from the claws of the bracket - front bumper.

NOTE:

Detach the opposite side in the same manner.

3. Remove the energy absorber foam - front.

4. Remove the bolts and clips, disconnect the connector and remove the active grille shutter. (H4 model)

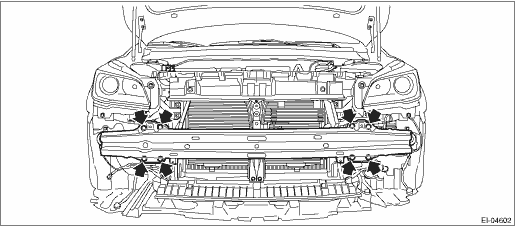

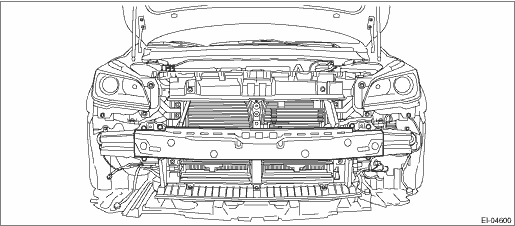

5. Remove the bolts, and remove the bumper beam COMPL - front.

NOTE:

After the bolts are removed, raise the bumper beam COMPL - front a little to remove it from vehicle body.

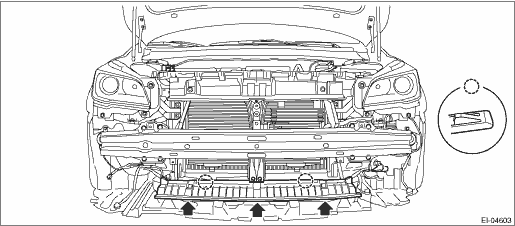

6. Remove the under cover - front. Front Under Cover > REMOVAL

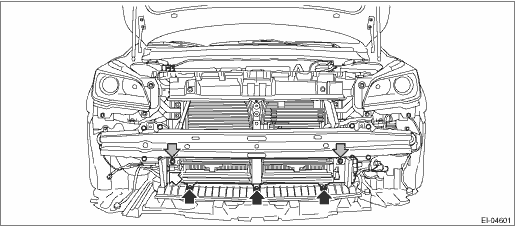

7. Remove the bolts, and pull the bracket - front center LWR to remove.

8. Remove the bolts and clips, and remove the bracket - front bumper corner.

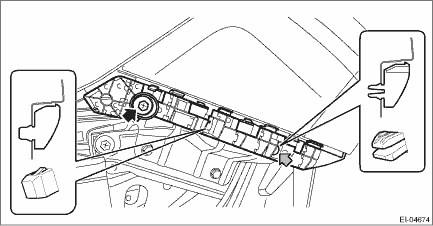

9. Remove the bracket - front bumper side.

(1) Remove the bolts and screws.

(2) Remove the claws from behind the fender COMPL - front, and remove the bracket - front bumper side.

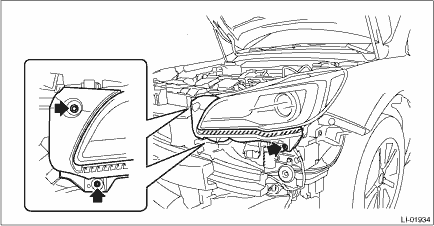

10. Remove the fog light assembly - front. Front Fog Light Assembly > REMOVAL

Installation
CAUTION:• Install the bumper face - front so that the front end of the under cover (b) comes inside the bumper face - front (a).• Before installing the bumper face, match the claws on the ...
