Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

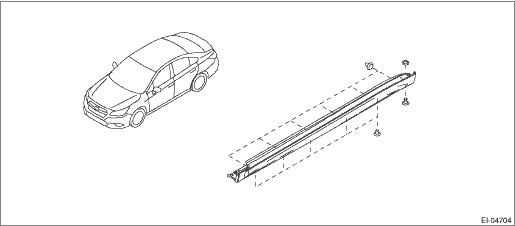

1. SEDAN MODEL

Remove the clips and detach the side garnish assembly.

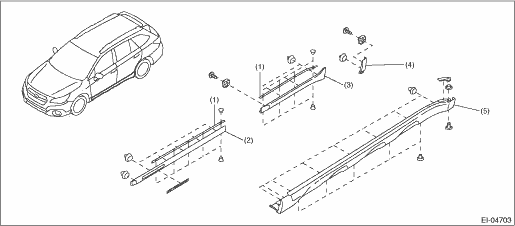

2. OUTBACK MODEL

1. Remove the clips and detach the side garnish assembly.

(1)

Double-sided tape

(3)

Garnish ASSY rear door

(5)

Side sill garnish ASSY

(2)

Garnish ASSY front door

(4)

Garnish ASSY rear quarter

2. Remove the garnish assembly - door and the garnish assembly - rear quarter.

(1) Attach the protective tape to the periphery of the garnish.

(2) Heat the garnish section for 3 — 5 minutes at 40°C — 60°C (104°F — 140°F) using a heat light or a drier.

CAUTION:

Be careful not to burn yourself.

(3) Separate the bonded part of double sided tape with a nylon cord or equivalent.

(4) Release the clips, and remove the garnish assembly.

Side garnish
...

Installation
1. SEDAN MODELCAUTION:Make sure that there is a gasket attached on the clip of the garnish assembly. If a gasket is not attached, water leakage may occur.Install the side garnish assembly.2. OUTBACK M ...
