Subaru Legacy Service Manual: Removal

CAUTION:

When the stereo camera or windshield glass has been replaced, removed or installed, always perform the adjustment and inspection of the camera. (When the stereo camera has been replaced with a new part, the camera remains in a failed state until adjustment and inspection are performed.)

Since the stereo camera is a precision equipment, install the protective cover before handling it. (New stereo camera is equipped with a protective cover as a service part.)

During removal, do not hold at the left and right cameras.

Do not apply any impact to the stereo camera. (Even the slightest shock will deviate the optical axis of the camera, resulting in the loss of normal operation of the camera.)

Do not disassemble the stereo camera.

Attach the protective cover to the replacement part, put it into the box in the same way as the other parts and return it. Cover the replaced stereo camera with a protective cover.

Do not touch the lens filter on the stereo camera. If touched, replace the stereo camera.

When removing the stereo camera cover assembly, cover with dust-free paper such as copy paper to avoid interference with the camera lens, and attach the paper using tape while being careful not to let the adhesive surface contact the glass surface. Be sure to remove the paper after the procedure.

1. Disconnect the ground terminal from battery sensor. NOTE

2. Attach dust-free paper (a) such as copy paper to the stereo camera cover assembly.

3. Remove the stereo camera cover assembly.

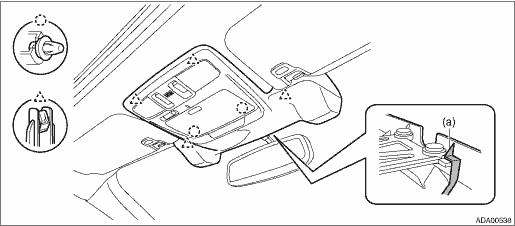

(1) Pull down the stereo camera cover, and then release the clips and claws.

(2) Release the hook (a) on the front side of stereo camera cover assembly.

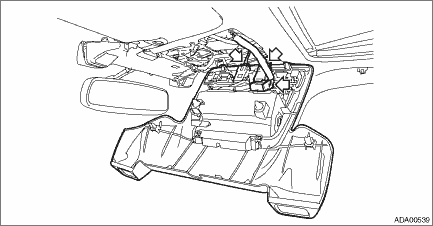

(3) Disconnect the connectors, and remove the stereo camera cover assembly.

NOTE:

For models with sunroof, disconnect the sunroof switch connector.

4. Remove the stereo camera.

(1) Disconnect the connector.

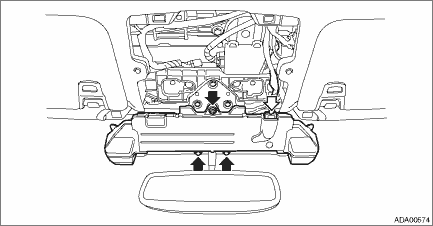

(2) Remove the nuts, and then remove the stereo camera.

NOTE:

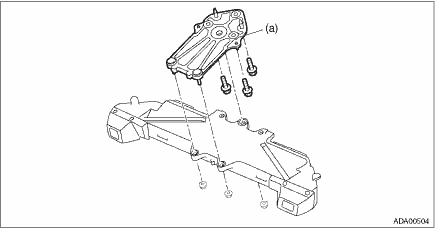

Remove the camera plate (a) as required.

Stereo camera
...

Installation
CAUTION:• Do not remove the protective cover until just before installing the stereo camera cover assembly. Using the bolt and nut, install the stereo camera with the protective cover attached, ...
