Subaru Legacy Service Manual: Removal

1. Lift up the vehicle, and then remove the left and right front wheels.

2. Remove the front under cover. Front Under Cover > REMOVAL

3. Remove the front stabilizer.

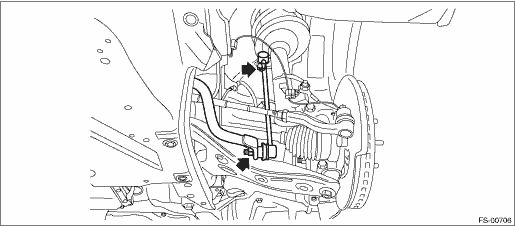

(1) Remove the left and right stabilizer links.

(2) Remove the left and right stabilizer brackets.

(3) Turn the front stabilizer by approximately 180° toward the front of the vehicle and pull out the front stabilizer from the right side of the vehicle.

(1)

Turn toward the front of the vehicle.

(2)

Front side of vehicle

Front stabilizer
...
