Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Hvac system (heater ventilator and a c) / Power transistor (auto a c model) / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

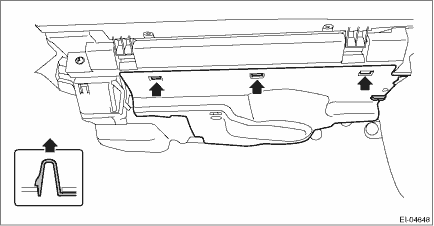

2. Release the hook, and remove the under cover assembly - passenger.

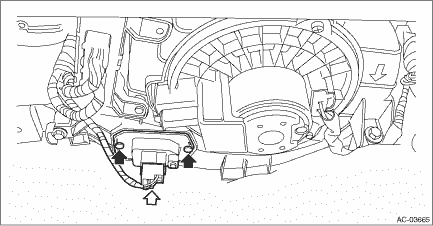

3. Remove the power transistor.

(1) Disconnect the connector.

(2) Remove the screws and remove the power transistor.

Power transistor (auto a c model)

...

Installation

1. Install the power transistor.2. Install the under cover assembly - passenger.3. Connect the ground terminal to battery sensor. NOTE ...
