Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Lighting system / Door switch / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the switch assembly - door.

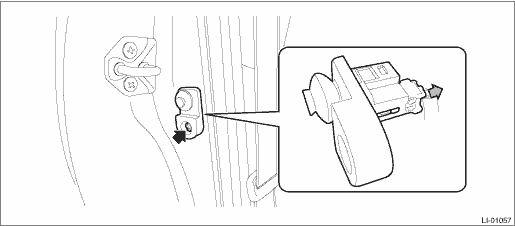

(1) Remove the screws, and pull out the switch assembly - door toward you.

(2) Disconnect the connector and remove the switch assembly - door.
