Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Lighting system / Light control sensor / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the trim panel - front pillar UPR. Upper Inner Trim > REMOVAL

3. Release the clips and claws, then detach the grille speaker side. Front Speaker > REMOVAL

4. Remove the sensor - automatic light.

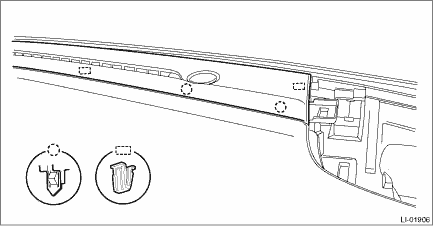

(1) Release the claws of the duct - front defroster.

CAUTION:

• Secure minimum space for performing the operation. Do not remove the duct - front defroster. If the duct - front defroster is removed, it cannot be reinstalled unless the instrument panel is removed.

• Be careful not to damage the sensor and interior trim.

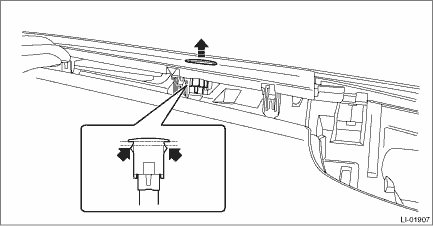

(2) Release the claws, and then pull out the sensor - automatic light from the duct - front defroster.

(3) Disconnect the connector and remove the sensor - automatic light.

Light control sensor

...

Inspection

1. Connect the connector.2. Turn the ignition switch to ON, and set the lighting switch to the AUTO position.3. Measure the voltage between connector terminals.Preparation tool:Circuit testerTerminal ...
