Subaru Legacy Service Manual: Removal

Subaru Legacy Service Manual / Lubrication(h6do) / Engine oil filter / Removal

CAUTION:

If the engine oil is spilt over exhaust pipe or the under cover, wipe it off with cloth to avoid emission of smoke or causing a fire.

1. Drain the engine oil. Engine Oil > REPLACEMENT

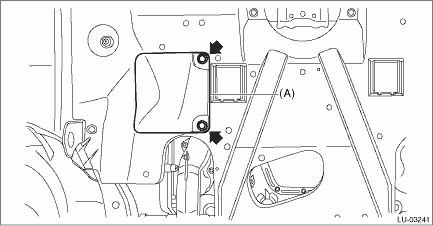

2. Remove the service hole cover (A) of the under cover.

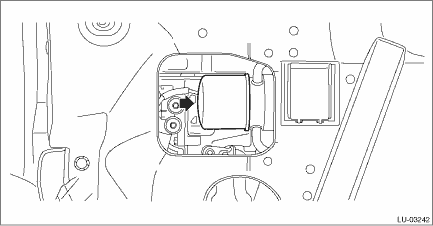

3. Remove the oil filter using ST.

ST 498547000

OIL FILTER WRENCH

1. After installing the oil filter, run the engine and check for oil leakage.NOTE:The filter element and filter case are permanently jointed; therefore, interior cleaning is not necessary.2. Check the ...
