Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Power assisted system (power steering) / Universal joint / Removal

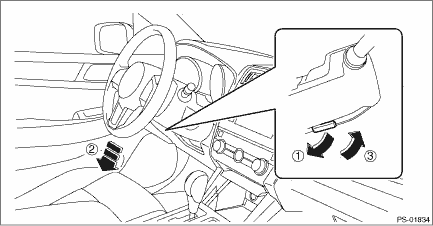

1. Adjust the tilt position of the steering column to the neutral position.

CAUTION:

Always place the tilt lever to the lock position after the steering column is adjusted.

2. Remove the under cover - front. Front Under Cover > REMOVAL

3. Remove the front exhaust pipe. (H6 model only) Front Exhaust Pipe > REMOVAL

4. Remove the universal joint assembly - steering.

(1) Place alignment marks on the universal joint assembly - steering.

NOTE:

Place alignment marks on the following positions.

• Between the column assembly - steering and the universal joint assembly - steering

• Between the steering gearbox assembly and the universal joint assembly - steering

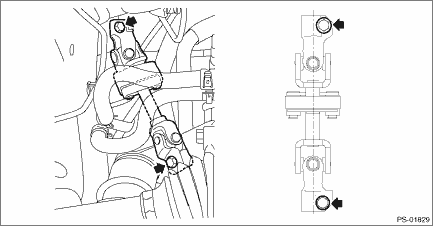

(2) Remove the bolt, and remove the universal joint assembly - steering.

5. Set the driver’s seat to the neutral position.

6. Prevent the steering wheel from turning using the seat belt.

Check for wear, damage or any other faults.1. Check the universal joint assembly - steering for excessive looseness.Service limit:Play of the universal joint assembly - steering: 0 mm (0 in)2. Measure ...
