Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Power rear gate system / Power rear gate auto closer / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the trim panel - rear gate. Rear Gate Trim > REMOVAL

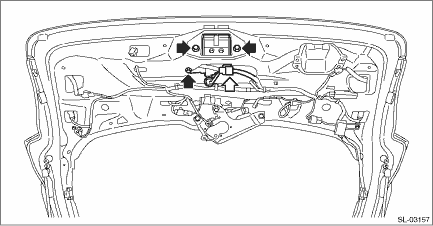

3. Remove the power rear gate auto closer.

(1) Disconnect the connector.

(2) Remove the bolts, and then remove the power rear gate auto closer.

1. LATCHPull the emergency lever to check that the latch operates properly.If latch deformation, abnormal wear, or unsmooth lock operation is observed, replace the power rear gate auto closer.2. ACTUA ...
