Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

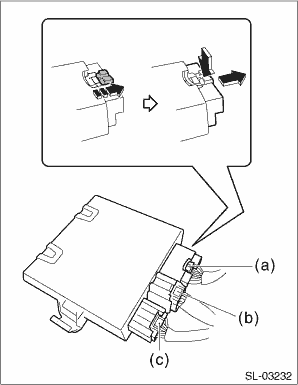

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE 2. Remove the trim panel - rear apron LH. Rear Quarter Trim > REMOVAL 3. Remove the power rear gate control module (PRG CM). (1) Disconnect the connectors in the following order. 1: Disconnect the connector (b). 2: Pull the slide lock in the arrowed direction, and disconnect the connector (a) by pressing in the lock. 3: Disconnect the connector (c). NOTE: When the connectors are not disconnected in the sequence, a diagnosis code (DTC) may be detected.

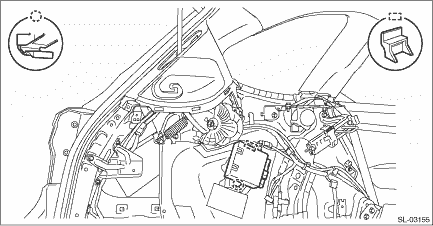

(2) Release the lock and hook, and remove the power rear gate control module (PRG CM).
|
Installation
1. Install the power rear gate control module (PRG CM).NOTE:Connect the connectors in reverse order of removal.2. Install the trim panel - rear apron LH.3. Connect the ground terminal to battery senso ...
