Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Security and locks / Rear gate latch and actuator assembly / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the trim panel - rear gate. Rear Gate Trim > REMOVAL

3. Remove the latch and actuator - rear gate.

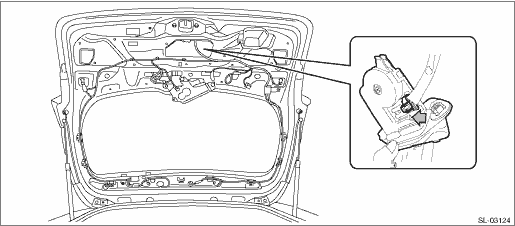

(1) Disconnect the connector.

(2) Remove the bolts, and remove the latch and actuator - rear gate.
