Subaru Legacy BN/BS (2015-2019) Service Manual / Security and locks / Rear gate opener button / Removal

NOTE:

• The button - opener rear gate is integrated with the rear lock button.

• Open the panel - rear gate before disconnecting the ground terminal from battery sensor.

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the trim panel - rear gate. Rear Gate Trim > REMOVAL

3. Remove the garnish assembly - rear gate. Rear Gate Garnish > REMOVAL

4. Remove the button - opener rear gate.

(1) Remove the garnish switch bracket from the garnish assembly - rear gate.

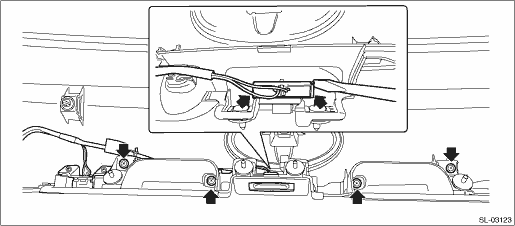

(2) While pushing the locks at both ends of the button - opener rear gate with a flat tip screwdriver, remove the button - opener rear gate together with the rear lock button.

Unit inspectionPreparation tool:Circuit tester1. Check the resistance between connector terminals.Terminal No.Inspection conditionsStandard1 — 2OPENLess than 5 -CLOSE1 M- or more2. If the inspection ...
