Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the arm assembly - windshield wiper. Front Wiper Arm > REMOVAL

3. Remove the cowl panel - side and the cowl panel assembly. Cowl Panel > REMOVAL

CAUTION:

Before removing the cowl panel, use an air blower and nylon brush to sweep gravel from the lower area of the front side of the glass.

4. Disconnect the hose - windshield washer.

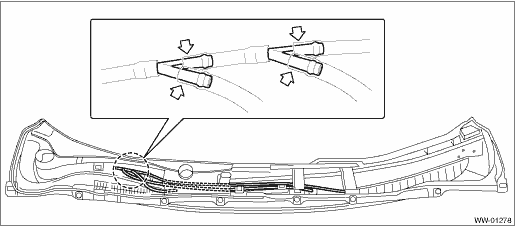

Models without EyeSight

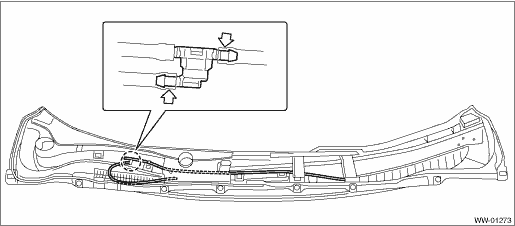

Models with EyeSight

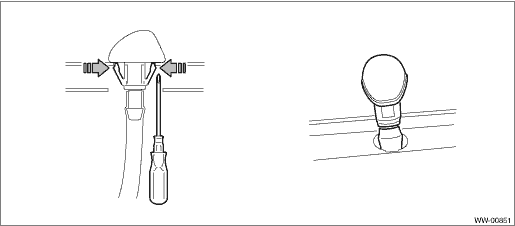

5. Remove the nozzle - windshield washer.

(1) Push the claw using a flat tip screwdriver, etc.

(2) When the nozzle - windshield washer lifts up, pull out the nozzle - windshield washer using a clip remover, etc.

(3) Disconnect the hose - windshield washer, and remove the nozzle - windshield washer.

Front washer nozzle
...

Adjustment
1. NOZZLE - WINDSHIELD WASHER1. Turn the wiper switch to OFF position.2. While the vehicle is at a standstill, insert the washer nozzle adjustment tool (a) into upper side (b) and lower side (c) of th ...
