Subaru Legacy BN/BS (2015-2019) Service Manual / Wiper and washer systems / Rear wiper motor / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the rear gate trim. Rear Gate Trim > REMOVAL

3. Remove the arm assembly - rear wiper.

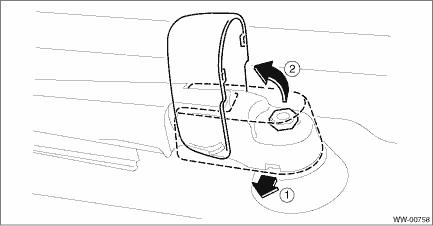

(1) Remove the cover - rear wiper arm.

(2) Remove the nut, and remove the arm assembly - rear wiper.

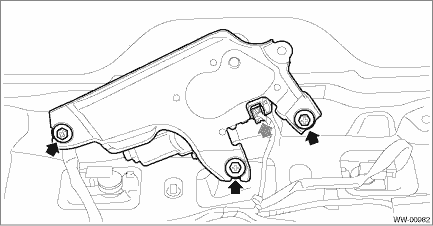

4. Remove the motor assembly - rear wiper.

(1) Disconnect the harness connector of the motor assembly - rear wiper.

(2) Remove the bolts, and remove the motor assembly - rear wiper.

CAUTION:Fix the motor to prevent the motor from being shorted by moving during operation.1. Connect the battery to the motor assembly - rear wiper connector, and check that the motor assembly - rear w ...
