Refer to “DISASSEMBLY” for removal procedures of scalp cap and mirror face. Outer Mirror Assembly > DISASSEMBLY

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

2. Remove the trim panel - front door. Door Trim > REMOVAL

3. Turn over the sealing cover - front door.

CAUTION:

• Carefully remove the butyl tape. Excessive force will easily break the sealing cover - front door.

• If the sealing cover - front door gets broken, replace it with a new part.

• Be careful not to allow the butyl tape to contact any trims and seats because the butyl tape, which has a strong adhesive force, is difficult to remove once it adhered.

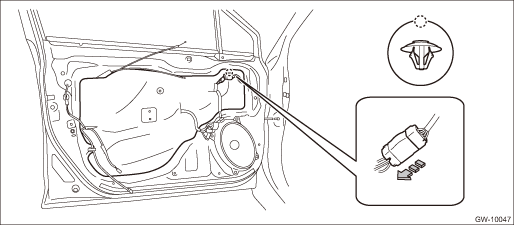

(1) Remove the connector clip that is installed on the panel assembly - front door, and disconnect the connector.

(2) Carefully remove and turn over the sealing cover - front door within the area where the operation can be performed.

4. Remove the bolts to remove outer mirror assembly.

CAUTION:Be careful not to catch the harness in between the parts.1. Install the light assembly - side turn mirror.2. Install the cover - cap outer mirror.3. Install the cover - cap outer mirror lower. ...
